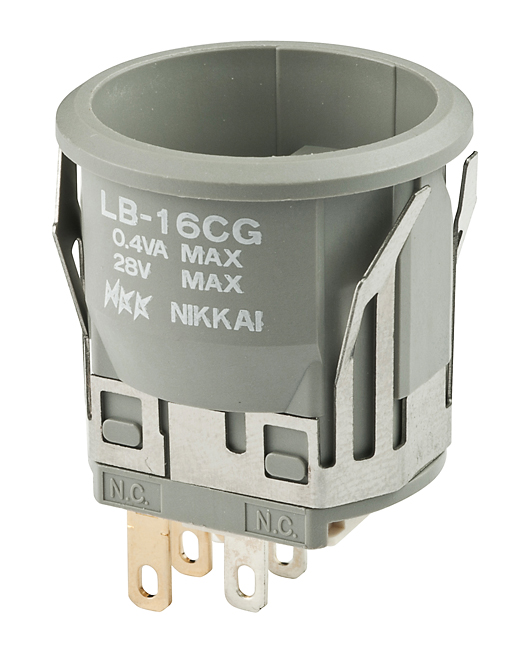

NKK Switches LB16CGG01 Illuminated Pushbutton
The Standard Size Pushbutton Switch with snap-in mounting features bright surface illumination using carefully designed diffusion and filtering systems. It offers both incandescent and neon lamp options, as well as LED capabilities with various color choices including red, amber, green, blue, and white. The switch is constructed from durable materials like polycarbonate and stainless steel, with environmental ratings suitable for operating temperatures from -25°C to +50°C or +70°C depending on illumination. It is IP65 panel sealed, suitable for industrial controls, with compatibility for quick connect and solder terminals, designed for long mechanical and electrical life, and certified for UL, cUL, and CSA standards.
NKK Switches LB16CGG01 Illuminated Pushbutton Specifications:
- Housing Material: Polycarbonate
- Contact Material: Silver alloy or copper with gold plating
- Illumination Options: Incandescent, Neon, Bright LED, Super Bright LED
- LED Colors: Red, Amber, Green, Blue, White
- Operating Temperature Range: -25°C to +50°C (illuminated), -25°C to +70°C (non-illuminated)
- Ingress Protection: IP65 (panel sealed model)
- Mounting: Snap-in; compatible with panel thickness from 1.0mm to 4.0mm
- Electrical Ratings: 3A at 125V/250V AC; 0.4VA at 28V AC/DC
- Switch Life: Min 1,000,000 operations (momentary); 200,000 (maintained circuit)
- Terminal Types: Solder lug, quick connect, optional PCB adapters
- Dimensions: Approximate panel cutout 16.2mm x 16.2mm (square), 16.2mm x 20.7mm (with barriers), or 22.4mm round, depth varies by model
- Standards & Certifications: UL, cUL, CSA recognition when ordered with proper markings
- Environmental Resistance: Vibration, humidity, and shock resistant
Buy the NKK Series LB Illuminated Pushbutton: LB16CGG01
Order the NKK LB16CGG01 illuminated pushbutton switch online today to enhance your control panel with reliable, bright illumination and durable construction. Designed for industrial environments, it features snap-in mounting, IP65 sealing for dust and water resistance, and is certified for UL, cUL, and CSA standards. Ideal for automation systems, machinery, and electronic controls, this pushbutton offers multiple illumination options with LED, neon, or incandescent lamps, ensuring superior visibility and long-lasting performance. Easy installation with quick connect or solder terminals makes it a versatile choice for your projects.
Get NKK LB16CGG01 today—built for precision, long-lasting durability, and industrial control solutions.
Frequently Asked Questions
Where can I buy NKK Switches LB16CGG01?
You can click on the BUY or RFQ button to purchase LB16CGG01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB16CGG01?
You can download the LB16CGG01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB16CGG01?
NKK Switches
