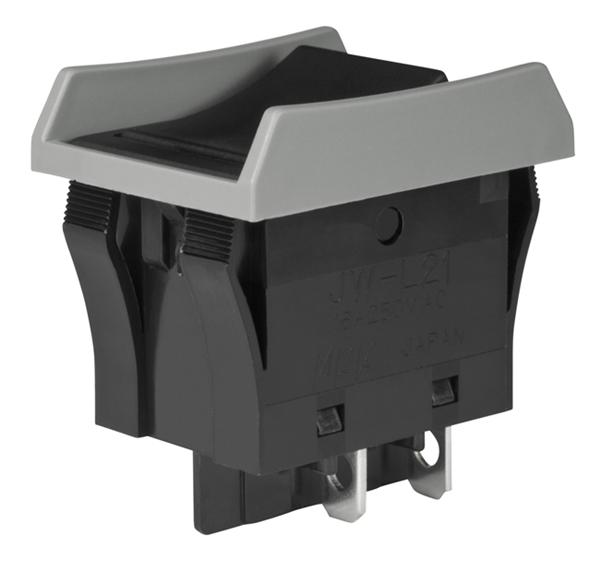

NKK Switches JWL21BAAH Power Rocker Switch
Power rocker switch with snap-in mounting design, suitable for electronic devices and control panels. Features high inrush current handling of 10 and 16 Amps, with IP67 sealing for panel seal models, and meeting UL94V-0 standards for housing materials. Designed for horizontal and vertical mounting options, it ensures reliable operation with a high mechanical and electrical life of 25,000 operations, and certification for TV-8 and TV-5 ratings. The switch has robust construction, insulation barriers, and corrosion-resistant terminals, making it ideal for diverse industrial and electronic applications.
NKK Switches JWL21BAAH Power Rocker Switch Specifications:
- Power Level: 10A @ 125/250V AC, 16A @ 125/250V AC
- Electrical Life: 25,000 operations
- Mechanical Life: 25,000 operations
- Contact Resistance: 10 milliohms maximum for JWM & JWMW; 20 milliohms maximum for JWL & JWLW
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 2,000V AC between contacts for 1 minute; 4,000V AC between contacts & case for 1 minute
- Operating Temperature Range: -25°C to +70°C for JWM & JWL; -25°C to +85°C for JWMW & JWLW
- Housing Material: Polyphenylene ether (UL94V-0)
- Housing Finish: Matte
- Terminals: Brass with silver plating
- Panel Thickness Range: 0.039" - 0.157" without barrier; 0.024" - 0.126" with barrier
- Seal: IP67 for panel seal models
- Standards & Certifications: UL94V-0, UL, CSA, VDE
- Shock Resistance: 50G for 6 right-angled directions, 5 shocks each
- Humidity Resistance: 90-95% RH for 96 hours @40°C
- Vibration Resistance: 10-55Hz with 1.5mm amplitude
- Soldering: Manual, standard profile, solder lug/quick connect terminals
Buy the Buy NKK Switches JWL21BAAH Part Number JWL21BAAH Online
Order the NKK Power Rocker Switch JWL21BAAH online today for dependable inrush current handling of 16 Amps at 250V AC, IP67 sealing, and UL94V-0 rated housing. Perfect for electronic devices, control panels, and industrial equipment that require high durability and reliable operation. Enjoy fast shipping and expert support to ensure seamless integration into your application. Choose quality, safety, and long-lasting performance with this high-inrush rocker switch—available now for quick online purchase.
Get NKK Switches JWL21BAAH today—built for precision, durability, and reliable control in industrial and electronic devices.
Frequently Asked Questions
Where can I buy NKK Switches JWL21BAAH?
You can click on the BUY or RFQ button to purchase JWL21BAAH from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part JWL21BAAH?
You can download the JWL21BAAH datasheet or visit the NKK Switches website for support.
Who is the manufacturer of JWL21BAAH?
NKK Switches
