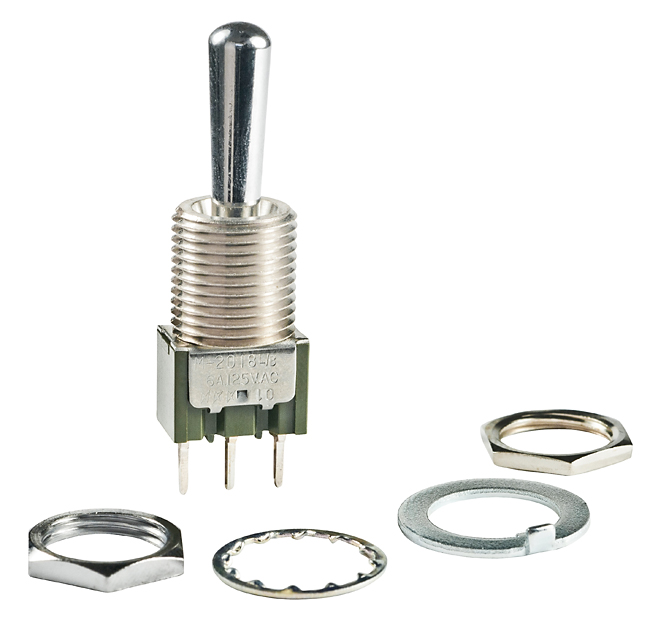

NKK Switches M2018B2B1W03 Miniature Toggle Switch
The miniature toggle switch series features high-quality brass construction with chrome or optional finishes, designed for reliable switching in industrial control systems. It offers a variety of circuit configurations including SPST, DPST, and DPDT with dual ratings for power and logic levels, combining excellent electrical performance with robust mechanical durability. Recognized for high dielectric strength, insulation resistance, and mechanical life, these switches are suitable for a wide range of industrial automation and control panel applications, featuring epoxy sealed terminals and optional splashproof bushings for enhanced environmental protection.
NKK Switches M2018B2B1W03 Miniature Toggle Switch Specifications:
- Electrical Capacity (Resistive Load): 6A @ 125V AC, 3A @ 250V AC, 0.4VA @ 28V DC
- Contact Resistance: 10 milliohms maximum for silver; 20 milliohms for gold
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts, 1,500V AC between contacts and case for 1 minute
- Mechanical Life: 100,000 operations minimum; 50,000 for flat and locking models
- Environmental Range: -30°C to +85°C, humidity up to 95% for 96 hours at 40°C
- Vibration Resistance: 10-55Hz with 1.5mm amplitude over 1 minute
- Shock Resistance: 50G acceleration, tested in multiple directions
- Mounting: Bushing mount, standard hardware includes hex nuts, locking rings, and lockwashers
- Material: Brass with chrome plating, epoxy sealed terminals, polycarbonate or polyethylene caps depending on model
- Standards & Certifications: UL listed, CSA certified, recognized with markings, IP67 splashproof bushings available
Buy the NKK Switches M2018B2B1W03 – Reliable Miniature Toggle for Industrial Applications
Discover the high-quality miniature toggle switch designed for industrial automation, featuring epoxy sealed terminals, dual ratings, and optional splashproof bushings. Perfect for control panels, automation systems, and machinery requiring reliable switching with long mechanical life. Easy to install with bushing mount design and robust construction in brass and polycarbonate material. Ensure your industrial equipment meets highest standards of safety and durability by purchasing this switch online today. Enjoy fast delivery and excellent customer support for your automation needs.
Buy NKK Switches M2018B2B1W03 now and experience unmatched reliability and performance in industrial control and automation systems.
