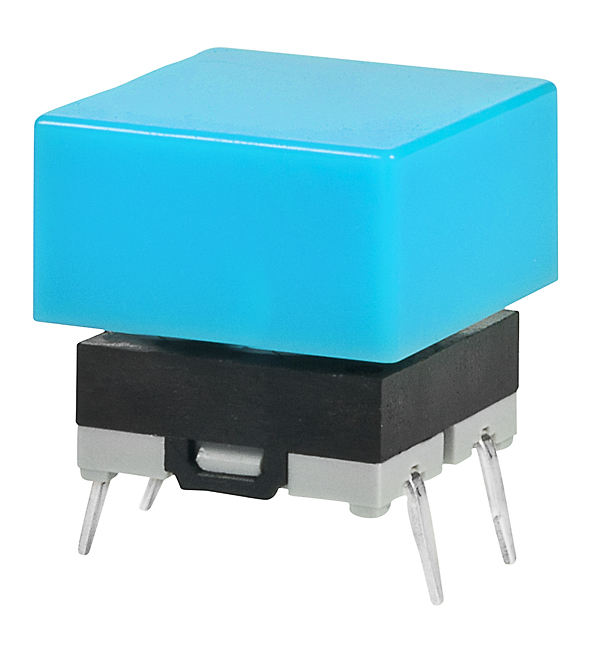

NKK Switches JB15HKP2G Low Profile Tactile Switch
The JB Series low-profile tactile switch offers reliable manual input for compact electronic devices. Designed for use on printed circuit boards, it features a sealed construction with high longevity, up to 5,000,000 actuations. The switch includes a glass fiber reinforced PBT actuator, with various actuator types such as flat, sculptured, and extended, providing excellent tactile feedback. Its sealed rubber seal prevents contact contamination, ensuring durability in harsh environments. Suitable for low-voltage, low-current circuits, this switch supports automated soldering and cleaning, making it ideal for intricate electronic assemblies requiring high reliability.
NKK Switches JB15HKP2G Low Profile Tactile Switch Specifications:
- Electrical Capacity (Resistive Load): 50mA @ 24V DC (Standard), 125mA @ 24V DC (High Operating Force)
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 250V DC
- Dielectric Strength: 250V AC minimum for 1 minute
- Mechanical Life: 5,000,000 operations minimum
- Electrical Life: 5,000,000 operations minimum
- Nominal Operating Force: 1.76N (JB15F), 2.65N (JB1SH)
- Total Travel: 0.012" (0.30mm)
- Actuator Material: Glass fiber reinforced PBT, Polyacetal
- Seal Material: Nitrile butadiene rubber
- Base Material: Glass fiber reinforced PBT
- Movable Contacts: Brass with silver plating
- Stationary Contacts: Brass with silver plating
- Terminals: Phosphor bronze with tin plating
- Operating Temperature Range: 25°C to +70°C
- Humidity: 90-95% for 240 hours @ 40°C
- Vibration: 10-55Hz, peak-to-peak 1.5mm for 2 hours
- Shock: 50G acceleration in 6 directions
- Sealing: IP67 IEC 60529
- Soldering: Wave and manual profile compatible
- Standards & Certifications: UL94V-0 rated case and base
Buy the NKK Series JB Low Profile Process Sealed Tactiles: JB15HKP2G
Order the NKK JB Series low-profile tactile switch online now to experience reliable, sealed manual input components with a high cycle life of up to 5 million operations. Perfect for PCB mounting in compact devices, it features a sealed rubber contact design that prevents contamination and supports automated soldering and cleaning processes. Ideal for low-voltage and low-current circuits, this switch delivers tactile feedback, durability, and high-quality construction, ensuring continued performance in harsh environments and demanding electronic applications.
Get NKK JB15HKP2G today—built for precision, durability, and automated assembly in compact electronic applications.
