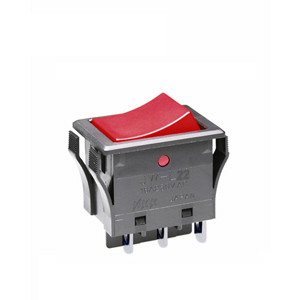

NKK Switches JWL22RCA Power Rocker Switch
The JWL22RCA is a power rocker switch featuring a snap-in mounting mechanism for reliable operation in electronic circuits. Designed to handle high inrush currents, this switch offers durable performance with a robust construction. It supports ratings up to 16A at 250V AC and 5A at 72V DC, making it suitable for industrial and automation applications. The switch incorporates a dust-resistant interior seal, meets IP67 sealing standards, and features a polyamide housing with a matte finish. Its design ensures minimal contact bounce and enhanced electrical life, ideal for demanding environments requiring dependable toggle control.
NKK Switches JWL22RCA Power Rocker Switch Specifications:
- Electrical Rating: 16A @ 125/250V AC; 5A @ 72V DC
- Inrush Current: 163A (JWL Models)
- Contact Resistance: 20 milliohms maximum
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 2,000V AC for 1 minute
- Mechanical Life: 25,000 operations
- Electrical Life: 25,000 operations
- Operating Temperature Range: -25°C through +70°C for JWM & JWL, -25°C through +85°C for JWMW & JWLW
- Switch Housing Material: Polyamide (UL94V-0)
- Seal: IP67 sealed for panel seal versions
- Housing Color: Black, Gray, Ivory
- Terminal Type: Solder Lug/Quick Connect 0.110” or 0.187”
- Panel Thickness Range: 0.039” - 0.157” (1.0mm - 4.0mm)
- Standards & Certifications: UL, CSA, VDE compliant
- Operating Force: 3.92N (Single Pole), 7.84N (Double Pole)
- Angle of Throw: 26°
- Housing Finishes: Matte
- Barrier Types: No Barrier (R) or With Barrier (B)
- Rocker Cap Colors: Black, Ivory, Red, Gray
Buy the Buy NKK Series JW Power Rocker Switch Part Number JWL22RCA Online
Purchase the NKK JWL22RCA power rocker switch online to ensure reliable switching in industrial circuits. This switch features high inrush current capacity, IP67 sealing, and dust-resistant internals, making it ideal for automation and heavy-duty applications. Its durable polyamide housing, compact design, and robust construction provide excellent performance and longevity. Easily install using snap-in mounting, with terminal options supporting quick connect or solder lug configurations. Order now for dependable, high-quality switch solutions for your control panel needs.
Get NKK JWL22RCA today—built for high inrush current handling and long-lasting durability.
Frequently Asked Questions
Where can I buy NKK Switches JWL22RCA?
You can click on the BUY or RFQ button to purchase JWL22RCA from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part JWL22RCA?
You can download the JWL22RCA datasheet or visit the NKK Switches website for support.
Who is the manufacturer of JWL22RCA?
NKK Switches
