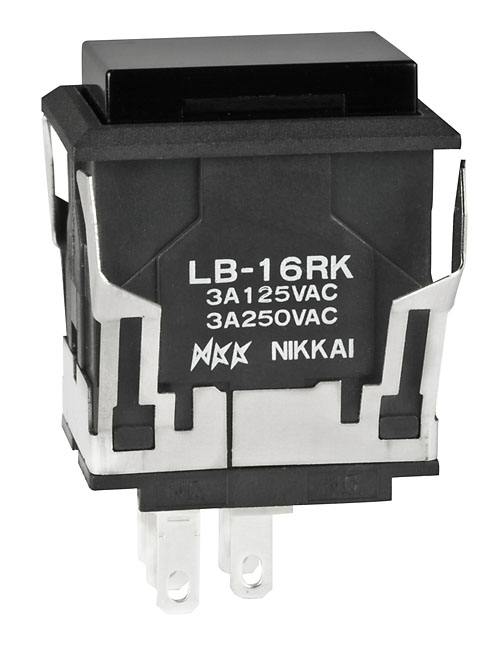

NKK Switches LB16RKW01A Illuminated Pushbutton
This standard size illuminated pushbutton switch features snap-in mounting, making panel installation quick and easy. It offers bright surface illumination with options for different LED colors and resistor configurations, suitable for industrial control panels. The switch has a robust construction with stainless steel clips for secure mounting across various panel thicknesses. It provides tactile and audible feedback, long electrical life, and high reliability. Ideal for automation, machinery, and control systems demanding clear status indication and durable operation in harsh environments.
NKK Switches LB16RKW01A Illuminated Pushbutton Specifications:
- Housing Material: Polycarbonate (Finish: Glossy)
- Operating Temperature Range: -25°C to +50°C (Illuminated), -25°C to +70°C (Nonilluminated)
- Electrical Capacity: 3A @ 125/250V AC, 0.4VA @ 28V AC/DC
- Contact Resistance: 50 milliohms max for silver, 100 milliohms max for gold
- Insulation Resistance: 200 megaohms min @ 500V DC
- Dielectric Strength: 1,000V AC contact-to-contact, 1,500V AC contact-to-case for 1 min
- Mechanical Life: 1,000,000 operations (momentary), 200,000 operations (maintained)
- Nominal Operating Force: 4.9N (approximate)
- Travel: Total travel 0.118" (3.0mm), Pretravel and Overtravel 0.059" (1.5mm)
- Panel Cutout: 0.638" x 0.638" (16.2mm x 16.2mm) for square models, 0.866" round, 0.866" x 0.866" (22.0mm x 22.0mm) for rectangular
- Panel Thickness: 0.039" to 0.157" (1.0mm to 4.0mm)
- Mounting: Snap-in clips withstand a 3.92N downward force
- Standards & Certifications: Recognized under UL, cUL, CSA (when specified)
Buy the NKK Switches LB16RKW01A – Reliable Illuminated Pushbutton for Industrial Applications
Enhance your control systems with the NKK Switches LB16RKW01A illuminated pushbutton. Featuring snap-in mounting, bright LED indicators in multiple colors, and durable construction, it ensures reliable operation in demanding environments. Its high electrical capacity, long mechanical life, and compliance with industry standards make it ideal for automation, machinery, and control panels. Easy to install and maintain, this switch offers clear status indication and robust performance, boosting operational safety and efficiency in industrial applications.
Buy NKK Switches LB16RKW01A now and experience unmatched reliability and performance for industrial control panels with bright LED indication.
Frequently Asked Questions
Where can I buy NKK Switches LB16RKW01A?
You can click on the BUY or RFQ button to purchase LB16RKW01A from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB16RKW01A?
You can download the LB16RKW01A datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB16RKW01A?
NKK Switches
