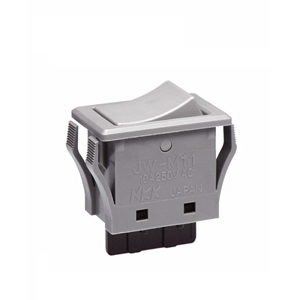

NKK Switches JWM11RHH High Power Rocker Switch
Power rocker switch with snap-in mounting mechanism, suitable for various electronic devices and control panels. Designed to handle high inrush currents of 10 and 16 Amps at rated voltages, it features a robust construction with UL94V-0 standard housing and contact materials. The switch offers reliable electrical and mechanical life, with enhanced insulation resistance and dielectric strength. Suitable for panel seal applications with IP67 waterproof versions, this switch ensures dust resistance and long-lasting performance in demanding industrial environments, making it ideal for control systems and automation equipment.
NKK Switches JWM11RHH High Power Rocker Switch Specifications:
- Electrical Capacity: 10A @ 125/250V AC; 16A @ 125/250V AC
- Contact Resistance: 10 milliohms maximum for JWM models; 20 milliohms maximum for JWL models
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 2,000V AC minimum between contacts for 1 minute; 4,000V AC minimum between contacts & case for 1 minute
- Mechanical Life: 25,000 operations minimum
- Electrical Life: 25,000 operations minimum
- Operating Temperature Range: -25°C through +70°C for JWM & JWL; -25°C through +85°C for panel seal models
- Housing Material: Polyphenylene ether (UL94V-0)
- Contact Material: Silver alloy with silver plating
- Terminal Material: Brass with silver plating
- Housing & Base Finish: Matte
- Panel Seal Versions: IP67 rated, dust resistant with interior seal
- Terminal Types: Solder lug/quick connect; 0.110” & 0.187”
- Panel Thickness Range: 0.039” to 0.157” (JWM & JWMW); 0.039” to 0.157” (JWL & JWLW)
- Seal: Interior dust resistant seal, gasket included for panel seal models
- Standards & Certifications: UL, CSA, VDE markings for various models
- Mounting: Snap-in
- Environmental Resistance: Dust, moisture (IP67), vibration, shock
- Additional Features: External barriers, molded terminals, designed to break light contact welds
Buy the NKK JWM – Reliable Power Rocker Switch for Industrial Applications
Enhance your control panel with the NKK High Power Rocker Switch. Rated at 10 and 16 Amps, it features durable construction, IP67 waterproof versions, and snap-in mounting for easy installation. Ideal for demanding industrial environments, this switch provides long-lasting reliability with high electrical and mechanical life. With certifications from UL, CSA, and VDE, it ensures safety and quality. Perfect for automation, machinery, and control systems requiring robust and dependable switch performance. Order online today for quick delivery.
Buy NKK JWM11RHH power rocker switch now and experience unmatched reliability and performance in industrial control systems.
