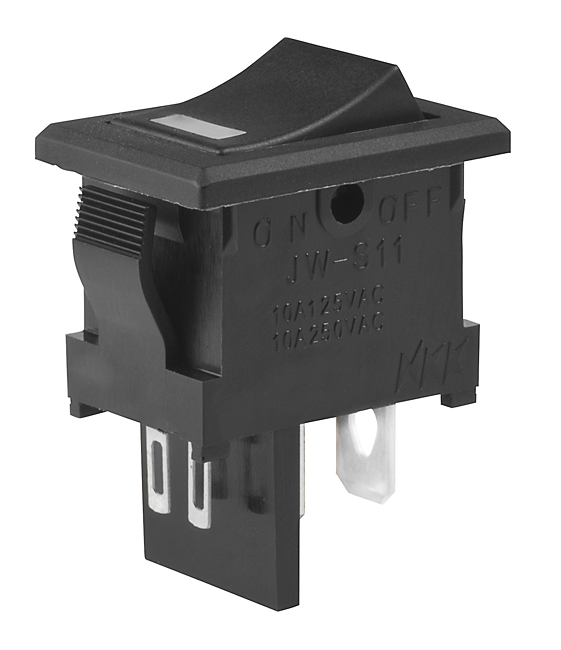

NKK Switches JWS11RAAF Power Rocker Switch
A power rocker switch designed for easy snap-in installation, suitable for various electronic devices and panels. Built with dust-resistant interior cover and polyamide housing meeting UL94V-0 flammability standards, it offers reliable operation with a rated capacity of 10A at 125/250V AC and options for illumination with LED indicators. Ideal for telecommunication, automation, and consumer applications, the switch features multiple color options, barrier configurations, and robust electrical and mechanical specifications for durable performance across various environments.
NKK Switches JWS11RAAF Power Rocker Switch Specifications:
- Power Level: 10A @ 125/250V AC, 6A @ 125/250V AC (UL/CSA), 5A (3A) @ 125/250V AC (VDE)
- Contact Resistance: 10 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Dielectric Strength: 2,000V AC between contacts for 1 min, 4,000V AC between contacts & case for 1 min
- Mechanical Life: 30,000 operations minimum
- Electrical Life: 10,000 operations minimum
- Nominal Operating Force: Single Pole 3.92N, Double Pole 5.39N
- Angle of Throw: 30°
- Rocker Material: Polyphenylene ether (UL94V-0)
- Housing Material: Polyamide (UL94V-0)
- Contact Material: Copper with silver plating
- Illumination: Red, Amber, Green LEDs with specific forward voltage and current ratings
- Operating Temp Range: 25°C to +70°C (non-illuminated), 25°C to +50°C (illuminated)
- Humidity: 90-95% for 96 hours @ 40°C
- Vibration: 10-55Hz, amplitude 1.5mm for 15 min in 3 directions
- Shock: 50G acceleration in 6 directions
- Sealing: Dust resistant inner seal
- Soldering: Manual, no process sealing, hand cleaning with alcohol-based solution
- Standards & Certifications: UL94V-0, UL, CSA, VDE
Buy the NKK Series JWS – Reliable Power Switch for Industrial Applications
Enhance your electrical panels and devices with this reliable power rocker switch designed for easy snap-in installation, dust resistance, and multiple color and illumination options. Rated for up to 10A at 125/250V AC, it ensures dependable performance in industrial, automation, telecommunication, and consumer applications. Available in non-illuminated and illuminated variants, with barrier and color options, its robust construction meets UL94V-0 flammability standards. Perfect for demanding environments, this switch combines durability, safety, and versatility to meet your project needs.
Order your NKK Series JWS power rocker switch today and give your projects the dependable quality they deserve with industry-leading durability and performance.
Frequently Asked Questions
Where can I buy NKK Switches JWS11RAAF?
You can click on the BUY or RFQ button to purchase JWS11RAAF from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part JWS11RAAF?
You can download the JWS11RAAF datasheet or visit the NKK Switches website for support.
Who is the manufacturer of JWS11RAAF?
NKK Switches
