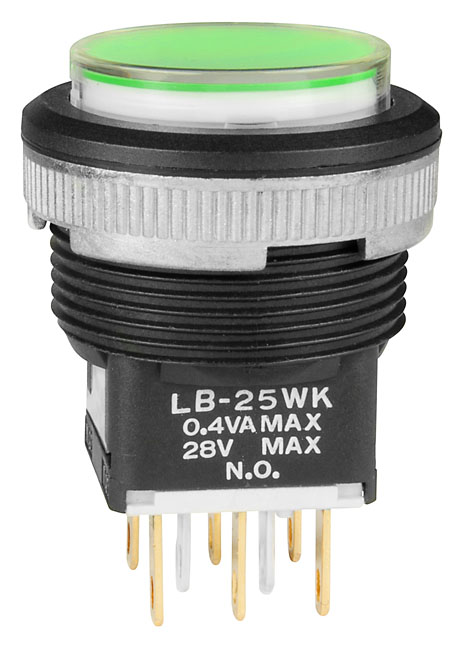

NKK Switches LB25WKG015F12JF Standard Panel Seal Pushbutton
A standard size illuminated pushbutton switch designed for industrial and outdoor use, featuring full surface illumination, bicolor LED options, and IP65 sealing for harsh environments. It offers a robust construction with a snap-action contact mechanism providing long electrical life and quick response. The switch includes a stainless steel clip for secure mounting across panel thicknesses. Available with LED or incandescent lamps, it supports quick connect and solder lug terminals sealed against contaminants, making it ideal for control panels requiring durability, reliability, and visibility in challenging conditions.
NKK Switches LB25WKG015F12JF Standard Panel Seal Pushbutton Specifications:
- Housing Material: Glass fiber reinforced polyamide (UL94V-0)
- Operating Temperature Range: -25°C to +50°C for illuminated, -25°C to +70°C for non-illuminated
- Mechanical Life: 1,000,000 operations
- Electrical Life: 200,000 operations
- Contact Resistance: 50 milliohms maximum for silver, 100 milliohms maximum for gold
- Dielectric Strength: 1,000V AC minimum between contacts for 1 minute; 1,500V between contacts and case
- Vibration Resistance: 10-55Hz at peak-to-peak amplitude of 1.5mm for 2 hours
- Shock Resistance: 50G acceleration test
- Sealing: IP65 according to IEC60529, NEMA 4 & 13 compatible
- Mounting: Stainless steel clips for panel thicknesses up to 4mm, torque 1.96Nm
- Lamp Options: Incandescent or LED with various colors, bright or super bright, with resistor options
- Terminals: Solder lug and quick connect, epoxy sealed against contaminants
- Rated Current: 3A at 125/250V AC, 0.4VA at 28V AC/DC
- Standards: UL, CSA recognized when ordered with markings
Buy the NKK Series LB Illuminated Pushbutton: LB25WKG015F12JF
Order the NKK LB25WKG015F12JF illuminated pushbutton online today and ensure reliable control with features like IP65 sealing, bright LED illumination, and robust mounting options. Perfect for industrial or outdoor control panels, this switch offers long life, easy installation, and high environmental resistance. With a wide range of lighting options and sealed terminals, it guarantees operational integrity in demanding environments. Purchase now to enhance your control systems with this durable, waterproof switch designed for precision and long-lasting performance.
Get NKK LB25WKG015F12JF today—built for precision, durability, and easy control in harsh environments.
Frequently Asked Questions
Where can I buy NKK Switches LB25WKG015F12JF?
You can click on the BUY or RFQ button to purchase LB25WKG015F12JF from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB25WKG015F12JF?
You can download the LB25WKG015F12JF datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB25WKG015F12JF?
NKK Switches
