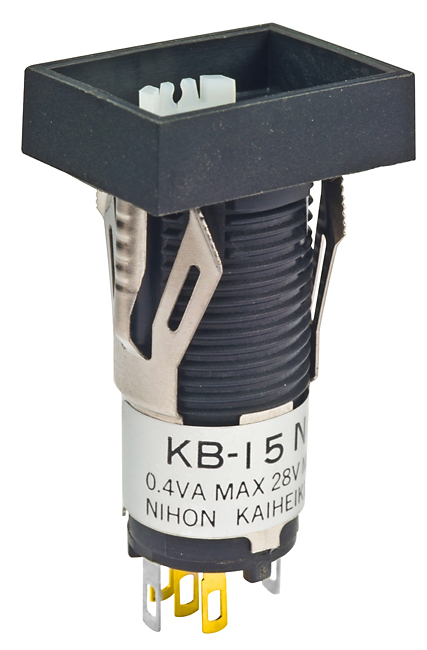

NKK Switches KB15NKG01 Miniature Pushbutton Switch
A miniature illuminated pushbutton switch designed for panel mounting applications. Ideal for control panels where space is limited and visual indicator functionality is required.
NKK Switches KB15NKG01 Miniature Pushbutton Switch Specifications:
- Electrical Capacity Resistive Load: 1A @ 125/250V AC, 0.4VA @ 28V DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC minimum between contacts for silver; 750V AC for gold
- Mechanical Life: 100,000 operations minimum
- Electrical Life: 50,000 operations for silver; 100,000 for gold
- Nominal Operating Force: 0.98 ~ 2.45N maintained, 0.98 ~ 1.96N momentary
- Contact Timing: Nonshorting (break-before-make)
- Travel: Pretravel 2.2mm, Overtravel 0.8mm, Total Travel 3.0mm
- Housing: Polyamide (UL94V-0)
- Movable Contactor: Phosphor bronze with silver or gold flash plating
- Stationary Contacts: Phosphor bronze with silver or gold flash plating
- Environmental Data: Operating temperature -25°C to +50°C, humidity 90-95% for 96 hours, vibration 10-55Hz, shock 50G
- Installation: Mounting torque 0.78Nm, Cap installation force 4.51N, manual soldering profile as per supplement
- Standards & Certifications: UL9AV-0 housing, recognized with marking, CSA certified models recognized at 1A @125/250V AC
Buy the Buy NKK Miniature Pushbutton Switch Part Number KB15NKG01 Online
Purchase your NKK SeriesKB KB15NKG01 miniature illuminated pushbutton switch online today for quick delivery. Designed for panel mounting, this switch ensures long-lasting performance with high electrical ratings and robust materials. Its compact size makes it perfect for space-constrained control panels, providing reliable tactile feedback and visual indication through bright illumination. Suitable for various automation and control applications, this switch meets UL and CSA standards, offering excellent insulation resistance and durability. Buy now and enhance the quality and reliability of your projects with this essential control component.
Order your NKK SeriesKB KB15NKG01 miniature illuminated pushbutton switch today and give your control panels the reliable, visual indicator functionality they deserve.
Frequently Asked Questions
Where can I buy NKK Switches KB15NKG01?
You can click on the BUY or RFQ button to purchase KB15NKG01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part KB15NKG01?
You can download the KB15NKG01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of KB15NKG01?
NKK Switches
