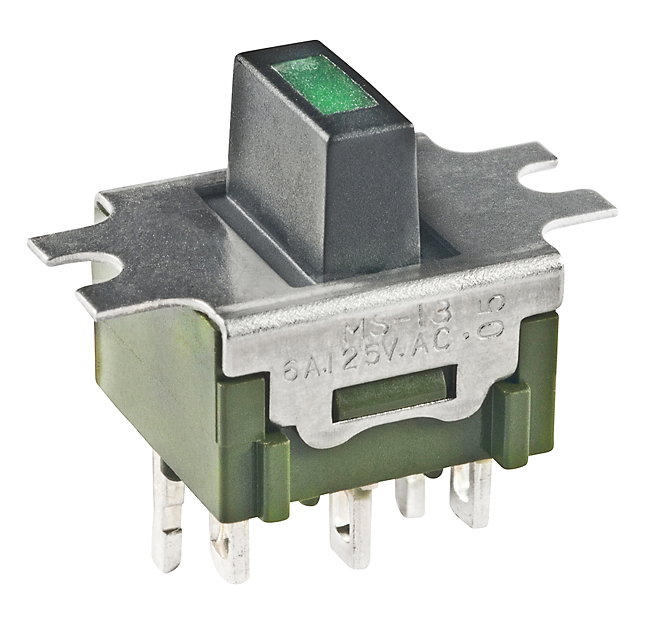

NKK Switches MS13LFW01F Miniature Illuminated Slide Switch
This miniature illuminated slide switch features LED lighting for enhanced visibility and precise control. It offers solder lug and straight PCB mounting options, suitable for electronic devices requiring reliable switching and illumination. The switch has a silver contact material rated at 6A at 125V AC, with a compact size of approximately 17.5mm length and 2.2mm travel distance. Designed with epoxy sealing and insulation barriers, it provides high dielectric strength and durability. Ideal for circuit control in industrial and consumer electronics, ensuring dependable performance in various operating environments.
NKK Switches MS13LFW01F Miniature Illuminated Slide Switch Specifications:
- Electrical Capacity: 6A at 125V AC, 3A at 250V AC
- Contact Resistance: 10 milliohms maximum
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 min; 1,500V AC between contacts and case for 1 min
- Mechanical Life: 50,000 operations
- Electrical Life: 25,000 operations
- Contact Timing: Break-before-make, nonshorting
- Total Travel: 0.087 inches (2.2mm)
- Actuator: Over-center, guide interlocked, illuminated LED
- Materials: Polyamide (UL94V-0), stainless steel, glass fiber reinforced diallyl phthalate
- LED Colors & Ratings: Red, Yellow, Green; 30mA forward current, typical forward voltage 1.98-2.16V
- Mounting: Solder lug, straight PC terminal, 2-screw flange
- Supplier's Certification: UL94V-0 rated actuator & case, high insulation barriers, dielectric strength well above standard requirements
- Operating Temperature Range: -10°C to +55°C
- Environmental Resistance: 90-95% humidity for 240 hours at 40°C, vibration resistance, shock resistance, wave and manual soldering compatible
