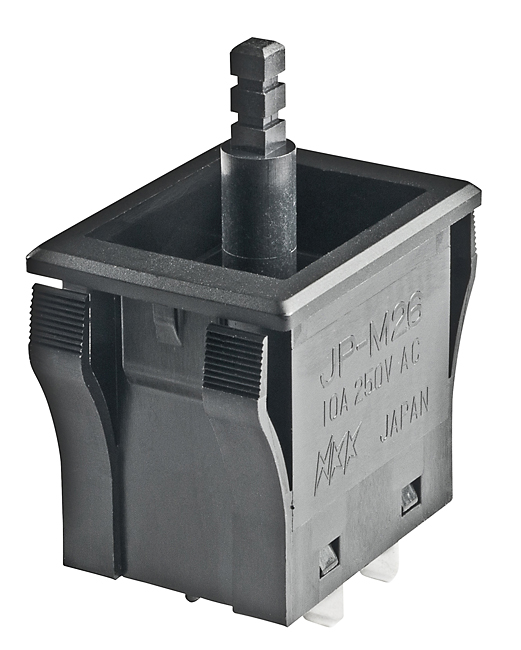

NKK Switches JPM26P Power Pushbutton
Power pushbutton designed with a snap-in mounting system for ease of installation and reliable performance in electronic equipment. It features heavy-duty construction, with a black molded polyamide housing meeting UL94V-0 flammability standards. Capable of handling large inrush currents, this model is certified for TV-5 rated power level at 10A and 125/250V AC, with a durable snap-action contact mechanism. It includes an integral barrier flange, tilt tactile features, and is sealed for dust resistance, making it suitable for industrial and control panel applications.
NKK Switches JPM26P Power Pushbutton Specifications:
- Rated Power Level: 10A @ 125/250V AC
- Contact Resistance: 20 milliohms maximum
- Insulation Resistance: 1,000 megohms minimum at 500V DC
- Dielectric Strength: 2,000V AC between contacts for 1 minute
- Mechanical Life: 25,000 operations minimum
- Electrical Life: 25,000 operations minimum
- Operating Temp Range: -10°C to +70°C
- Humidity: 90-95% for 96 hours at 40°C
- Vibration: 10-55Hz, amplitude 1.5mm, 1 minute cycle
- Shock: 50G acceleration (tested in 6 directions)
- Material: Housing of UL94V-0 polyamide, terminals of brass with silver plating
- Cap Material: Polyphenylene oxide, matte finish
- Cap Colors: Ivory, Gray, Black
- Mounting: Snap-in design
- Terminals: Solder lug / 3-187” (4.75mm) quick connect
- Panel Thickness Range: 0.5mm to 4.0mm
- Standards & Certifications: UL Recognized, CSA approved, VDE
- Vibration Resistance: Yes
- Sealing: Dust resistant with interior seal
Buy the NKK JPM26P – Reliable Power Pushbutton for Industrial Applications
Purchase the NKK JPM26P Power Pushbutton online today for dependable control in industrial equipment. Its snap-in mounting simplifies installation, while dust-resistant sealing ensures reliable operation even in harsh environments. Rated at 10A at 125/250V AC, it supports high inrush currents necessary for heavy-duty applications. With UL recognition and VDE approval, this pushbutton guarantees safety and compliance. Its durable polyamide housing, silver-plated terminals, and tactile feedback make it perfect for manufacturing, automation, and control systems that demand long-lasting performance and easy maintenance.
Get NKK JPM26P today—built for precision, durability, and easy installation in control panels and electronic devices.
Frequently Asked Questions
Where can I buy NKK Switches JPM26P?
You can click on the BUY or RFQ button to purchase JPM26P from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part JPM26P?
You can download the JPM26P datasheet or visit the NKK Switches website for support.
Who is the manufacturer of JPM26P?
NKK Switches
