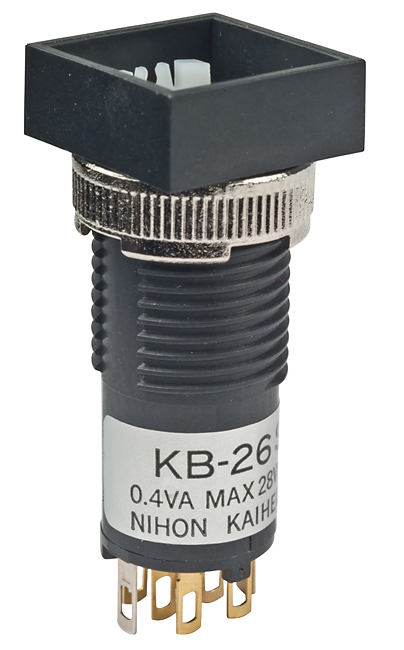

NKK Switches KB26SKG01 Miniature Pushbutton
This is a miniature illuminated pushbutton designed for panel mounting. It features a compact size suitable for panel integration and includes illumination for visibility and operational indication.
NKK Switches KB26SKG01 Miniature Pushbutton Specifications:
- Body diameter: 12mm
- Housing Material: Polycarbonate (UL94V-0)
- Mounting: Bushing or snap-in mounting
- Panel thickness: 0.020 to 0.268 inches (0.5 to 6.8mm)
- Illumination: Bright LED in various colors, including red, amber, green, white, and blue
- LED Voltage: 5V, 12V, 24V options available
- Lighting: Spot illumination with optional diffusers
- Contacts: Silver and gold plated options, rated 1A @ 125/250V AC
- Electrical Life: 100,000 operations for gold contacts
- Mechanical Life: 100,000 operations
- Operating Temperature: -25°C to +50°C
- Vibration Resistance: 3G at 10-55Hz
- Shock Resistance: 50G in 6 directions
- Soldering: Manual soldering as per specified profiles
- Standards: Recognized under UL, CSA, and Recognized (marking required)
Buy the Buy NKK Miniature Pushbuttons Part Number KB26SKG01 Online
Boost your project with the dependable quality of NKK miniature pushbuttons. The KB26SKG01 model offers bright LED illumination, compact design, and durable construction suitable for panel mounting. Perfect for control panels, automation systems, or electronic devices, this switch features high resistance to vibration and shock, ensuring long-term performance. Easy to install with either bushing or snap-in mounting, and compliant with UL and CSA standards, it provides reliable switching for demanding industrial applications.
Order your NKK Series KB26SKG01 miniature illuminated pushbutton today and enhance your control panel with reliable, bright illumination and long-lasting operation.
Frequently Asked Questions
Where can I buy NKK Switches KB26SKG01?
You can click on the BUY or RFQ button to purchase KB26SKG01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part KB26SKG01?
You can download the KB26SKG01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of KB26SKG01?
NKK Switches
