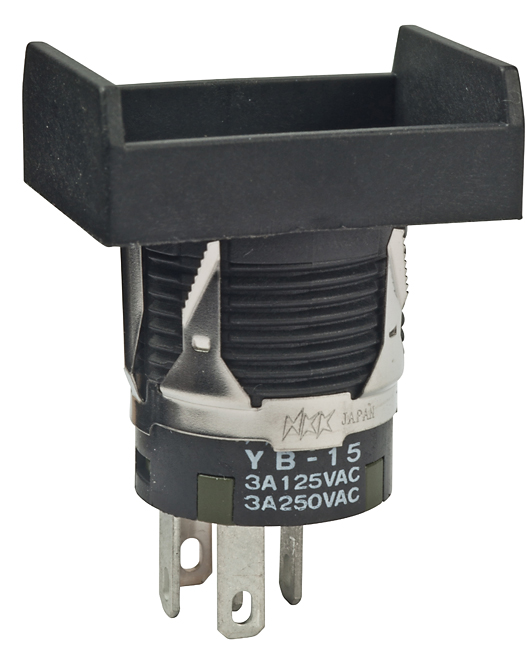

NKK Switches YB15NKW01 Short Body Pushbutton
This is a short-bodied, illuminated push button designed for panel mounting. It features clear or colored lenses, built-in LEDs with various colors, and options for sealed or non-sealed mounting. The switch offers tactile feedback, snap-action contacts for long life, and meets IP65 splashproof standards. It supports multiple mounting styles including bushing and snap-in, with rated ratings of 3A at 125/250V AC and 0.4VA at 28V AC/DC. Its ergonomic design and high durability make it suitable for industrial, automation, and control panel applications.
NKK Switches YB15NKW01 Short Body Pushbutton Specifications:
- Power Level (silver): 3A @ 125/250V AC
- Logic Level (gold): 0.4VA @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum for silver; 100 milliohms for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts; 1,500V AC between contacts & case for 1 minute
- Mechanical Life: 1,000,000 operations minimum for momentary circuit, 200,000 for maintained circuit
- Operating Temperature Range: -25°C to +50°C for illuminated, -25°C to +70°C for non-illuminated
- Mounting Torque: 0.785Nm maximum, quick connect force 24.5N
- Housing/Bezel: UL94V-0 polyamide, stainless steel contact, diallyl phthalate resin
- Environmental: IP65 splashproof, humidity 90-95% for 96 hours @ 40°C
- Standards: UL recognized, CSA certified, complies with IEC60529 IP65
Buy the Buy NKK Switches Short Body Pushbuttons Part Number YB15NKW01 Online
Purchase the high-performance NKK Series YB short body illuminated pushbutton online today. Featuring durable construction, multiple illumination and mounting options, and IP65 splashproof rating, this switch is perfect for industrial and automation control panels. Its long lifecycle and reliable electrical ratings ensure dependable operation in demanding environments. Whether you need sealed or non-sealed versions, secure your control systems with this innovative, easy-to-install pushbutton. Order now for fast delivery and transform your project workflow with top-tier switching solutions.
Order your NKK Series YB short body illuminated pushbutton today and enhance your control panel's reliability with high-quality switching performance.
Frequently Asked Questions
Where can I buy NKK Switches YB15NKW01?
You can click on the BUY or RFQ button to purchase YB15NKW01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part YB15NKW01?
You can download the YB15NKW01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of YB15NKW01?
NKK Switches
