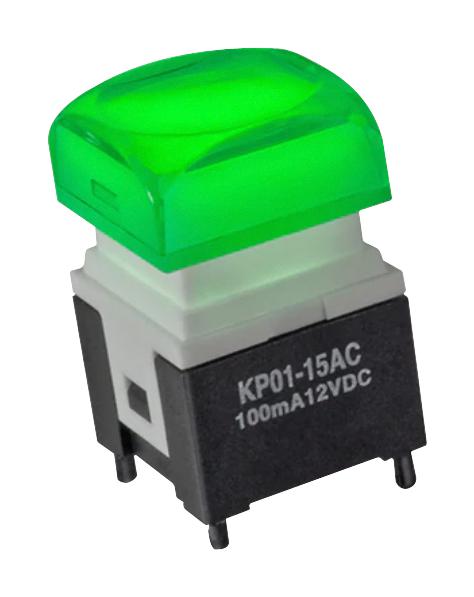

NKK Switches KP0115ANBKG03RGBP2TJB RGB Pushbutton Switch
The KP series miniature audio/video 4-pin RGB pushbutton switch provides a versatile and reliable solution for broadcast panels and professional AV devices. It features a 4.5mm stroke with a 1.9N actuation force, ensuring precise operation. The switch's unique actuation guide offers positive circuit transfer indication, complemented by a super bright RGB LED that delivers vibrant full-color spectrum with unlimited combinations. Designed with gold contacts rated at 100mA at 12VDC and straight PC terminals, the device guarantees high durability and long life, suitable for demanding audio/video applications.
NKK Switches KP0115ANBKG03RGBP2TJB RGB Pushbutton Switch Specifications:
- Stroke: 4.5mm (0.177 inches)
- Actuation Force: 1.9N
- Switch Type: SPST, Momentary
- Contacts: Gold plating, 100mA @ 12V DC
- LED: Super bright RGB, full spectrum, external power source needed
- Plunger Size: 11.6mm
- Cap Size: 15.0mm square
- Material: Polycarbonate lens with textured diffuser
- Housing Color: Black
- Electrical Resistance: 200 milliohms maximum
- Insulation Resistance: 100 megohms minimum @ 250V DC
- Dielectric Strength: 1,000V AC between contacts, 1,500V AC between contacts & case
- Mechanical Life: 5,000,000 operations minimum
- Environmental: Operating at -25°C to +50°C; 90-95% humidity for 240 hours
- Vibration: 10-55Hz with peak-to-peak amplitude of 1.5mm
- Shock: 51G acceleration
- Soldering: Wave and manual soldering compatible with specific temperature profiles
Buy the Buy NKK Switches Miniature RGB Pushbutton Part Number KP0115ANBKG03RGBP2TJB Online
Purchase the NKK Switches RGB Pushbutton Switch online today to ensure reliable operation in broadcast and professional AV setups. Featuring a super bright RGB LED, a long lifespan of 5 million operations, and gold-plated contacts, this switch provides vibrant color options within a compact dimension. Its 4.5mm stroke and unique actuation guide offer precise, silent switching with positive circuit indication. Ideal for high-quality audio/video equipment, it guarantees durability and excellent performance for demanding professional environments. Order now for fast delivery and competitive pricing.
Get NKK Switches KP0115ANBKG03RGBP2TJB today—designed for long-lasting durability and precise control in audio/video applications.
