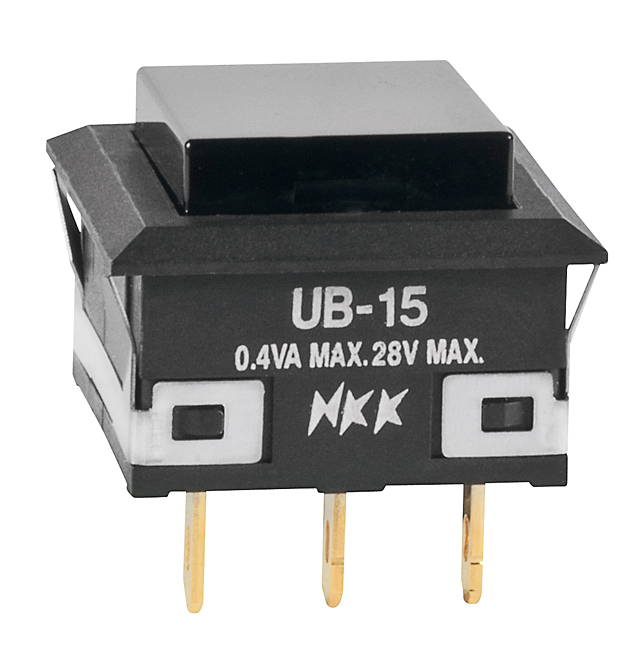

NKK Switches UB15KKG01NA Illuminated Pushbutton Switch
A low-profile, illuminated pushbutton switch designed for PC and solder mounting. This switch features a compact design suitable for panel applications and includes built-in illumination for easy visibility.
NKK Switches UB15KKG01NA Illuminated Pushbutton Switch Specifications:
- Poles & Circuits: 1 SPDT or DPDT options
- Electrical Capacity: 5A @ 125/250V AC, 0.4VA max @ 28V DC
- Contact Resistance: Silver contacts 50 milliohms max, Gold contacts 100 milliohms max
- Insulation Resistance: 200 megaohms min @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 min, 1,500V AC between contacts & case for 1 min
- Mechanical Life: 1,000,000 operations min for momentary, 200,000 for resistive load
- Travel: Total 2.3mm (0.091 inches), Pretravel 1.7mm (0.067 inches), Overtravel 0.6mm (0.024 inches)
- Housing Material: UL94V-0 glass fiber reinforced polyamide
- Operating Temperature Range: -20°C to +70°C
- LED Colors & Voltages: Red, Amber, Green, White, Blue; 1.85V to 3.2V, peak current 25-30mA
Buy the NKK Series UB – Reliable Illuminated Pushbutton for Industrial Applications
Order the reliable NKK Series UB illuminated pushbutton switch today. Designed for industrial use, it offers a compact, panel-mount design with built-in brightness for visibility. Its high electrical capacity and long mechanical life ensure durability and dependable operation in demanding environments. Perfect for control panels, automation systems, and machinery, this switch combines ease of use with robust construction, ensuring seamless integration into your application. Purchase now to enhance your equipment’s control and reliability.
Get NKK Series UB15KKG01NA today—built for precision with built-in illumination and long-lasting durability.
Frequently Asked Questions
Where can I buy NKK Switches UB15KKG01NA?
You can click on the BUY or RFQ button to purchase UB15KKG01NA from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB15KKG01NA?
You can download the UB15KKG01NA datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB15KKG01NA?
NKK Switches
