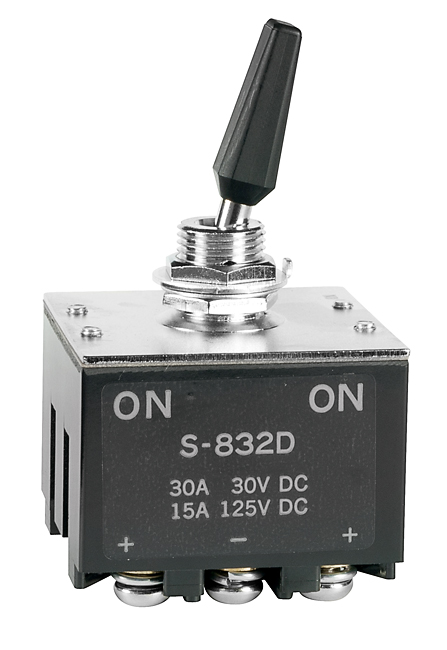

NKK Switches S832D High Capacity Toggle Switch
This high capacity standard size toggle switch is designed for reliable performance in a variety of electronic and industrial applications. It features multiple pole configurations including DPST, DPDT, and 3PDT, with resistive and inductive load ratings up to 50A. The switch has durable construction with nickel-plated brass toggles, phenolic resin insulators, and chrome-plated steel components. It includes multiple mounting options for panel thicknesses up to 4.0mm, with certifications for UL, CSA, and cUL recognition. Its high mechanical and electrical life ensures long-lasting durability in demanding environments.
NKK Switches S832D High Capacity Toggle Switch Specifications:
- Electrical Capacity: Up to 50A resistive and inductive load
- Pole Configurations: DPST, DPDT, 3PDT
- Maximum Panel Thickness: 4.0mm (0.158 inches)
- Materials: Brass with nickel or chrome plating, phenolic resin insulators, steel components
- Environmental Ratings: UL, CSA, cUL recognized; operating temperature: 10°C to +70°C
- Mechanical Life: Minimum 50,000 operations
- Electrical Life: Minimum 25,000 operations
- Bushing: Hardware options for panel mounting
- Contact Resistance: 10 milliohms maximum
- Insulation Resistance: 1,000 megohms minimum at 500V DC
- Dielectric Strength: 2,000V AC minimum for 1 minute
- Mounting Torque: 2.94 Nm (26 lbs.in)
- Standards & Certifications: UL, CSA, cUL recognition when ordered with markings
Buy the Buy NKK High Capacity Toggle Switch Part Number S832D Online
Purchase the high capacity toggle switch online for reliable performance in industrial and electronic applications. Featuring multiple pole configurations, up to 50A load capacity, and durable materials, this switch is ideal for automation, control panels, and rugged environments. It is UL, CSA, and cUL recognized, ensuring compliance with safety standards. The switch's versatile mounting options suit various panel thicknesses, and its long mechanical and electrical life guarantee durability and consistent operation. Order today for fast delivery and confidence in quality.
Get NKK S832D today—built for high load capacity, durability, and reliable switching in demanding industrial environments.
Frequently Asked Questions
Where can I buy NKK Switches S832D?
You can click on the BUY or RFQ button to purchase S832D from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part S832D?
You can download the S832D datasheet or visit the NKK Switches website for support.
Who is the manufacturer of S832D?
NKK Switches
