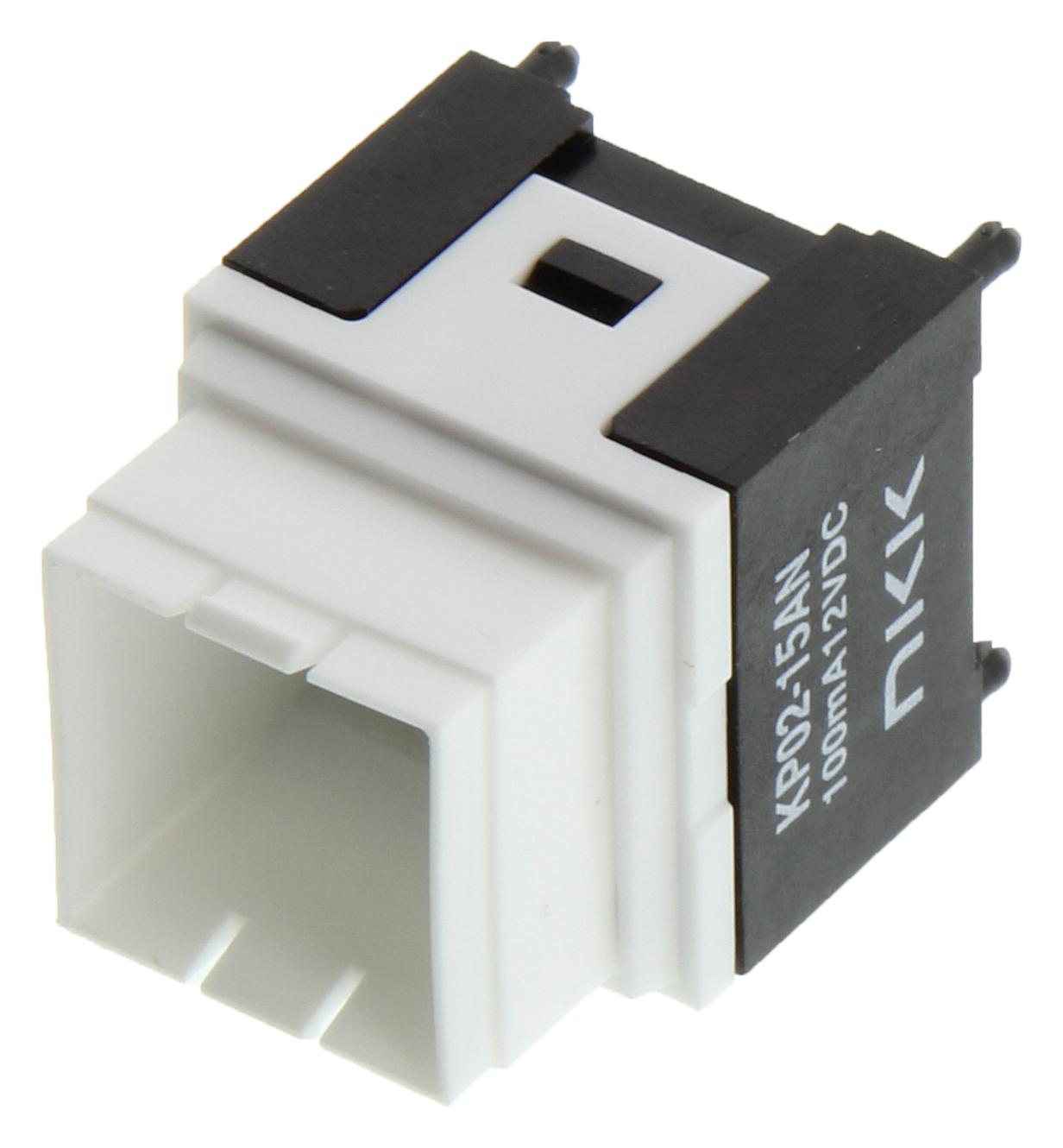

NKK Switches KP0215ANBKG036E Illuminated Pushbutton
The KP Series single color illuminated pushbutton offers a compact, reliable control solution with super bright LEDs in white, yellow, or blue. Featuring low electrical capacity of 100mA at 12V DC, gold-plated contacts, and a long operational life of 5 million cycles. Its sturdy construction includes a glass fiber reinforced PBT housing, polycarbonate lens, and stainless steel and brass components. Designed for low-voltage, low-current applications, it provides a short stroke of 3.5mm, smooth silent operation, and customizable legends, making it ideal for panel controls in industrial environments.
NKK Switches KP0215ANBKG036E Illuminated Pushbutton Specifications:
- Electrical Capacity: 100mA @ 12V DC
- Contact Resistance: 200 milliohms maximum
- Insulation Resistance: 100 megohms minimum @ 250V DC
- Dielectric Strength: 1,000V AC between contacts, 1,500V AC between contacts and case for 1 minute
- Mechanical Life: 5,000,000 operations minimum
- Electrical Life: 5,000,000 operations minimum
- Nominal Operating Force: 1.6N
- Travel: Pretravel 0.091 inches (2.3mm), Overtravel 0.047 inches (1.2mm), Total Travel 0.138 inches (3.5mm)
- Materials & Finishes: Plunger and upper housing made of glass fiber reinforced PBT UL94V-0, movable contact of gold over copper alloy, lower housing of polyacetal, stationary contacts of stainless steel with gold plating, switch terminals of brass with fin plating
- Operating Temperature Range: -25°C to +50°C
- Humidity: 90-95% for 240 hours @ 40°C
- Vibration: 10-55Hz, peak-to-peak 1.5mm traversing, in 3 directions for 2 hours
- Shock: 51G acceleration, in 6 directions with 5 shocks each
- Soldering: Wave and manual soldering with specified temperature cycles
- Environmental: Not process sealed, clean with alcohol-based solutions
- Standards & Certifications: UL94V-0 housing, not tested for UL or CSA recognition
Buy the Buy NKKSwitches KP Series Single Color Illuminated Pushbutton Part Number KP0215ANBKG036E Online
Enhance your control panel with the NKKSwitches KP Series illuminated pushbutton, featuring super bright LEDs in white, yellow, or blue, gold-plated contacts, and a long operational life. Its compact, short-stroke design of 3.5mm provides smooth and silent actuation, ideal for low-voltage control circuits. With customizable legends and durable construction, this pushbutton ensures reliable performance in industrial and automation applications. Easily order online to secure high-quality, dependable switches for your equipment.
Order your NKKSwitches KP Series KP0215ANBKG036E today and give your control panels the durable, bright illumination they need for reliable operation.
Frequently Asked Questions
Where can I buy NKK Switches KP0215ANBKG036E?
You can click on the BUY or RFQ button to purchase KP0215ANBKG036E from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part KP0215ANBKG036E?
You can download the KP0215ANBKG036E datasheet or visit the NKK Switches website for support.
Who is the manufacturer of KP0215ANBKG036E?
NKK Switches
