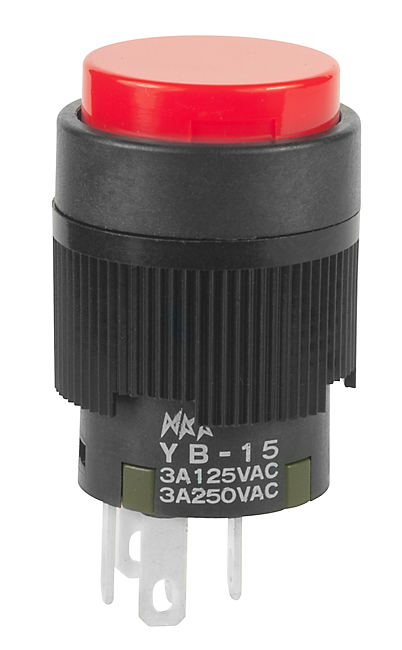

NKK Switches YB15CKW01CB Illuminated Pushbutton Switch
This illuminated pushbutton switch offers compact design for panel mounting in control applications. It features a short body, sealed construction, and options for LED illumination with multiple colors. The switch provides reliable operation with economical ratings of 3A @ 125/250V AC and 0.4VA @ 28V DC. Crafted from durable materials including polyamide housing and stainless steel contacts, it is suitable for harsh environments, with IP65 sealing. Ideal for industrial automation, machinery, and panel control systems requiring precise tactile feedback and long life.
NKK Switches YB15CKW01CB Illuminated Pushbutton Switch Specifications:
- Housing/Bezel: Polyamide (UL94V-0)
- Contacts: Silver alloy with silver plating
- Power Rating: 3A @ 125/250V AC
- Insulation Resistance: 200 megohms min @ 500V DC
- Dielectric Strength: 1,000V AC min for 1 min
- Mechanical Life: 1,000,000 operations
- Electrical Life: 200,000 operations
- Nominal Operating Force: 1.47N for nonsealed, 1.67N sealed
- Pretravel: 0.059” (1.5mm), Total Travel: 0.118” (3.0mm)
- Operating Temperature Range: -25°C to +50°C (illuminated), -25°C to +70°C (non-illuminated)
- Panel Seal: IP65 (IEC60529), with exterior o-ring
- Material: Glass fiber reinforced polyamide
- Mounting Torque: 0.785Nm maximum
- Soldering Temperature & Time: Refer to profile A in supplement
- Standards: UL Recognized, CSA Certified (with markings)
- Environmental Resistance: Humidity 95% at 40°C for 96 hrs, vibration, and shock resistant
Buy the NKK Series YB Illuminated Pushbutton: YB15CKW01CB
Order the NKK Series YB15CKW01CB illuminated pushbutton switch online today to benefit from durable construction, IP65 sealing, and reliable performance. This compact switch is perfect for industrial control panels, offering LED illumination options, long mechanical and electrical life, and compliance with safety standards like UL and CSA. Its sealed design protects against dust, oil, and splash, making it suitable for harsh environments. Enhance your automation and control systems by purchasing this high-quality switch effortlessly through our online platform for quick delivery and excellent support.
Buy NKK Series YB15CKW01CB illuminated pushbutton now and experience unmatched reliability and performance in control panel applications.
Frequently Asked Questions
Where can I buy NKK Switches YB15CKW01CB?
You can click on the BUY or RFQ button to purchase YB15CKW01CB from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part YB15CKW01CB?
You can download the YB15CKW01CB datasheet or visit the NKK Switches website for support.
Who is the manufacturer of YB15CKW01CB?
NKK Switches
