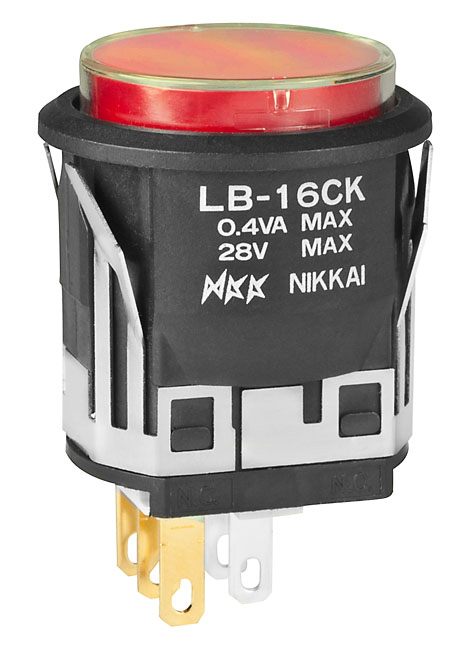

NKK Switches LB16CKG015C05JC Illuminated Pushbutton
This standard size illuminated pushbutton switch features snap-in mounting for easy installation in control panels. Designed with a built-in illumination, it ensures high visibility even in low-light environments. The switch offers reliable operation with a long electrical life, rated for 3A at 125V or 250V AC, and is available with various LED and lamp options for customizable signaling. Made from durable materials like polycarbonate and stainless steel, it is suitable for industrial and machinery control applications, meeting UL, cUL, and CSA standards for safety and quality.
NKK Switches LB16CKG015C05JC Illuminated Pushbutton Specifications:
- Housing Material: Polycarbonate (UL94V-0)
- Contacts: Silver or Gold-plated, rated 3A @ 125/250V AC
- Electrical Capacity: 3A @ 125V AC, 3A @ 250V AC, 0.4VA @ 28V AC/DC
- Terminal Type: Solder Lug and Quick Connect
- Contact Resistance: 50 milliohms maximum for silver, 100 milliohms for gold
- Dielectric Strength: 1,000V AC between contacts, 1,500V AC between contacts and case
- Mechanical Life: 1,000,000 operations
- Electrical Life: 200,000 operations
- Operating Temperature Range: -25°C to +50°C (Illuminated), -25°C to +70°C (Nonilluminated)
- Pretravel & Overtravel: 1.5mm (0.059 inches), Total Travel: 3.0mm (0.118 inches)
- Body Dimensions: Designed for panel cutouts of 16.2mm x 16.2mm (square) or equivalent for round/rectangular models
- Ingress Protection: Meets IP65 when panel sealed
- Certification: UL, cUL, CSA recognized when ordered with markings
Buy the NKK Series LB Illuminated Pushbutton: LB16CKG015C05JC
Order the NKK LB16CKG015C05JC illuminated pushbutton switch online today. This high-quality control component features snap-in mounting, long electrical and mechanical life, and built-in illumination, ensuring reliable operation in industrial and machinery applications. Made from durable polycarbonate and stainless steel, it meets UL, cUL, and CSA standards. Perfect for control panels requiring high visibility and durability, this switch's compact design minimizes behind-panel depth. Enhance your automation or control system with this trusted, easy-to-install, and reliable switch.
Get NKK LB16CKG015C05JC today—built for precision, durability, and visibility in industrial control systems.
Frequently Asked Questions
Where can I buy NKK Switches LB16CKG015C05JC?
You can click on the BUY or RFQ button to purchase LB16CKG015C05JC from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB16CKG015C05JC?
You can download the LB16CKG015C05JC datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB16CKG015C05JC?
NKK Switches
