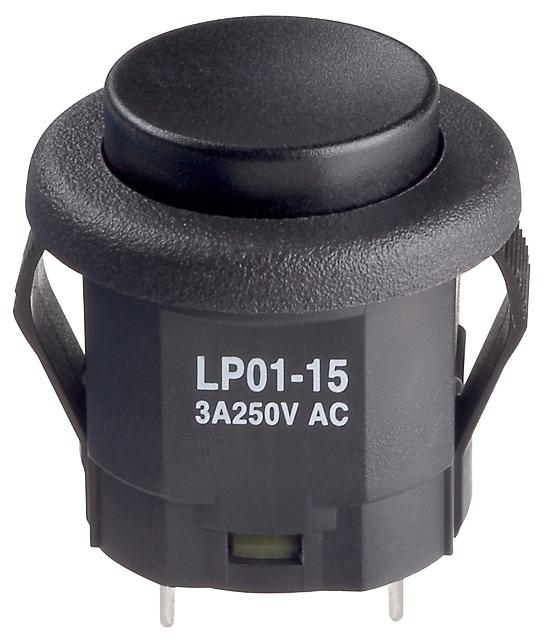

NKK Switches LP0115CMKW01A Short Body Pushbutton Switch
A short, panel-mounted pushbutton switch that is illuminated, designed for easy operation and clear visual indication on electronic panels. Made with environmentally friendly, RoHS-compliant materials, its durable construction features a concise body of 0.551 inches (14.0mm) for space efficiency and robust snap-action contacts for crisp actuation. The switch includes LED illumination options in red, green, or amber through a translucent white cap, with a silver-rated 3A @ 125V/250V AC contact capacity, offering reliable performance with a mechanical life of 500,000 operations and an electrical life of 50,000 operations. Suitable for various industrial and electronic applications.
NKK Switches LP0115CMKW01A Short Body Pushbutton Switch Specifications:
- Electrical Capacity: 3A @ 125V AC/250V AC, 3A @ 30V DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts, 1,500V AC between contacts and case
- Mechanical Life: 500,000 operations minimum
- Electrical Life: 50,000 operations minimum at rated load
- Nominal Operating Force: 1.5N for Single Pole, 3.0N for Double Pole
- Travel: total travel of 0.118 inches (3.0mm)
- Materials & Finishes: Actuator - polycarbonate; Housing - glass fiber reinforced polyamide (UL94V-0); Contact materials - phosphor bronze with silver plating; Lamp terminals - phosphor bronze with tin & copper plating
- Operating Temperature: 10°C to +50°C for illuminated, -25°C to +70°C for non-illuminated switches
- Environmental Resistance: 90-95% humidity for 240 hours at 40°C, vibration of 1.5mm at 10-55Hz, shock of 50G
- Mounting Torque: 0.8Nm
- Standards & Certifications: UL94V-0 flammability standard, recognized UL and cUL-listed when marked
Buy the NKK Series LPO1 Short Body Pushbuttons: LP0115CMKW01A
Order the NKK Series LPO1 short body illuminated pushbutton switch today online to enhance your control panel’s usability and reliability. This compact, panel-mounted switch features bright LED options in red, green, or amber, providing clear visual status indication. Constructed with environmentally friendly RoHS-compliant materials, it offers durable, corrosion-resistant features with a total travel of 0.118 inches. Its high-quality phosphor bronze contacts ensure reliable electrical connections for industrial and electronic applications, with a long mechanical life of 500,000 operations. Easy to install with snap-in or bushing mount options, ensure your equipment performs flawlessly with this dependable switch.
Buy NKK Series LPO1 short body illuminated pushbutton switch now and experience unmatched reliability and performance in your electronic control panels.
Frequently Asked Questions
Where can I buy NKK Switches LP0115CMKW01A?
You can click on the BUY or RFQ button to purchase LP0115CMKW01A from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LP0115CMKW01A?
You can download the LP0115CMKW01A datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LP0115CMKW01A?
NKK Switches
