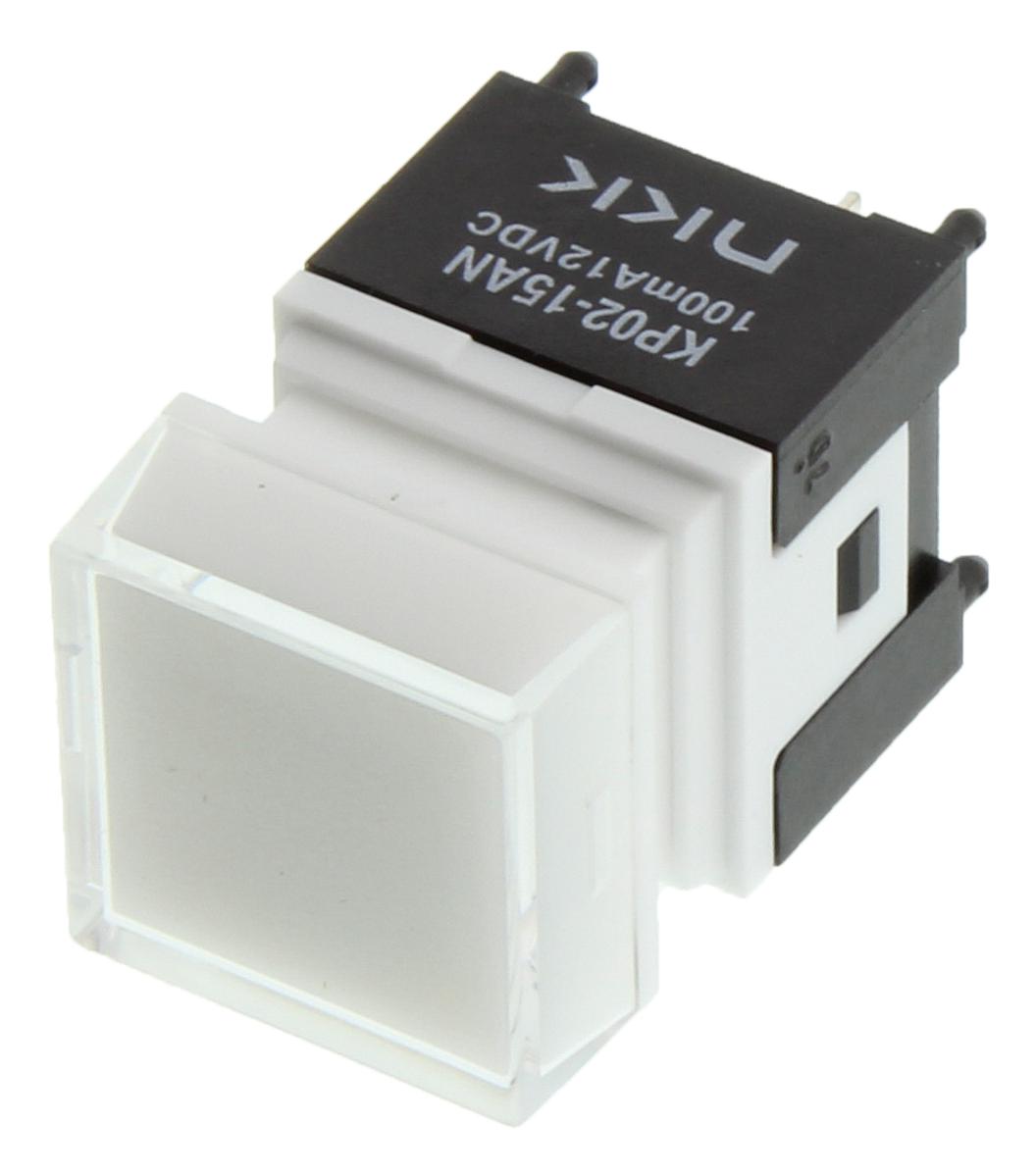

NKK Switches KP0215ANBKG036G2FJB Illuminated Pushbutton
The KP series single color illuminated pushbutton features super bright LEDs (white, yellow, blue) with 2-pin termination, ideal for control panels, with a long life of 5 million operations. Compact design includes a shorter stroke of 3.5mm, flat or sculptured caps, and high reliability with gold-plated contacts. Suitable for low-voltage, low-current circuits, it withstands harsh environments with operating temperatures from -25°C to +50°C and high humidity. Designed for easy installation and replacement, it offers customizable legends and different cap sizes, making it versatile across various industrial control applications.
NKK Switches KP0215ANBKG036G2FJB Illuminated Pushbutton Specifications:
- Electrical Capacity: 100mA @ 12V DC
- Contact Resistance: 200 milliohms maximum
- Insulation Resistance: 100 megohms minimum @ 250V DC
- Dielectric Strength: 1,000V AC between contacts, 1 minute
- Mechanical Life: 5,000,000 operations minimum
- Electrical Life: 5,000,000 operations minimum
- Travel: Total 0.138 inches (3.5mm)
- Pretravel: 0.091 inches (2.3mm)
- Overtravel: 0.047 inches (1.2mm)
- Materials: Glass fiber reinforced PBT (UL94V-0), gold over copper alloy, polyacetal, stainless steel with gold plating, brass with fin plating
- Operating Temperature: -25°C to +50°C
- Humidity: 90-95% for 240 hours at 40°C
- Vibration: 10 ~ 55Hz, peak-to-peak amplitude 1.5mm
- Shock: 51G acceleration in 6 directions
- Installation Force: 1.6N maximum
- Soldering: Wave (max preheat 110°C for 40s, peak 270°C for 6s), manual (390°C for 4s)
- Solder Cleaning: Alcohol-based solution recommended
- Flammability: UL94V-0 housing
- LED Specs: Max forward current 30mA, forward voltage 3.2V, reverse voltage 5V, ambient temp -25°C to +50°C
- Cap Sizes: 15.0mm and 17.4mm square caps, flat or sculptured
- Cap Colors: White, Yellow, Blue, Clear Lens, White Diffuser
- Switch Dimensions: 23.0mm height, plunger diameter 11.6mm
- Switch Type: SPST, normally open, momentary
Buy the NKK Switches KP0215ANBKG036G2FJB – Reliable Illuminated Pushbutton for Industrial Applications
Experience reliable operation with the NKK Switches illuminated pushbutton, featuring super bright LEDs in white, yellow, or blue. Its compact design with 3.5mm stroke, flat or sculptured caps, and high durability of 5 million operations make it ideal for industrial control panels. Designed for low-voltage circuits, it withstands harsh environments with temperature ranges from -25°C to +50°C and high humidity. Easy to install and customize with legends, this switch offers excellent visibility and long-lasting performance, ensuring dependable control in demanding environments.
Get NKK Switches KP0215ANBKG036G2FJB today—built for precision and long-lasting durability, suitable for control panels with super bright LEDs.
Frequently Asked Questions
Where can I buy NKK Switches KP0215ANBKG036G2FJB?
You can click on the BUY or RFQ button to purchase KP0215ANBKG036G2FJB from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part KP0215ANBKG036G2FJB?
You can download the KP0215ANBKG036G2FJB datasheet or visit the NKK Switches website for support.
Who is the manufacturer of KP0215ANBKG036G2FJB?
NKK Switches
