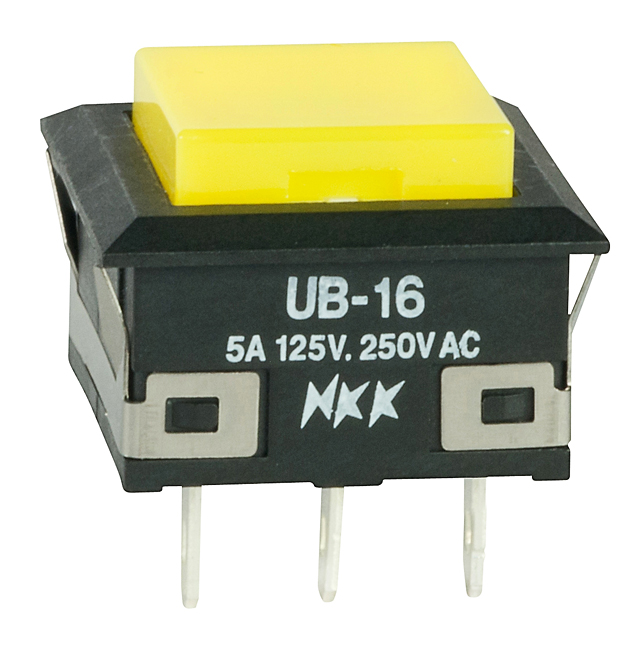

NKK Switches UB16KKW01NE Low Profile Pushbutton Switch
A low-profile, illuminated pushbutton switch designed for PC board mounting with solder terminals. Ideal for applications requiring a compact and reliable user interface component.
NKK Switches UB16KKW01NE Low Profile Pushbutton Switch Specifications:
- Power Rating: 5A at 125/250V AC, 5A at 30V DC
- Electrical Capacity (Resistive): 0.4VA maximum @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum for silver contacts
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 minute, 1,500V between contacts and case
- Mechanical Life: 1,000,000 operations
- Electrical Life: 200,000 operations
- Nominal Operating Force: 1.9N for single pole square & rectangular, 2.55N/3.1N for double pole
- Travel: Pretravel 0.067” (1.7mm); Overtravel 0.024” (0.6mm); Total travel 0.091” (2.3mm)
- Housing Material: UL94V-0 glass fiber reinforced polyamide
- Operating Temperature Range: -25°C to +50°C for illuminated versions
- Soldering: Profile A for wave and manual soldering
- Certifications: UL Recognized and CSA certified upon ordering with marking
Buy the NKK Series UB Low Profile Pushbutton: UB16KKW01NE
Discover the NKK Series UB16KKW01NE low-profile illuminated pushbutton switch, perfect for space-efficient designs requiring durability and reliable actuation. Its compact PCB mountable design features solder terminals, making installation straightforward. This switch offers high electrical ratings, excellent insulation resistance, and long mechanical life, ideal for industrial, consumer, and control applications. Easily integrate this switch to improve user interface functionality and ensure dependable operation in tight spaces. Order online now and get premium quality for your project.
Order your NKK Series UB16KKW01NE low-profile illuminated pushbutton today and enhance your device's reliability with this space-saving PC board mount switch.
