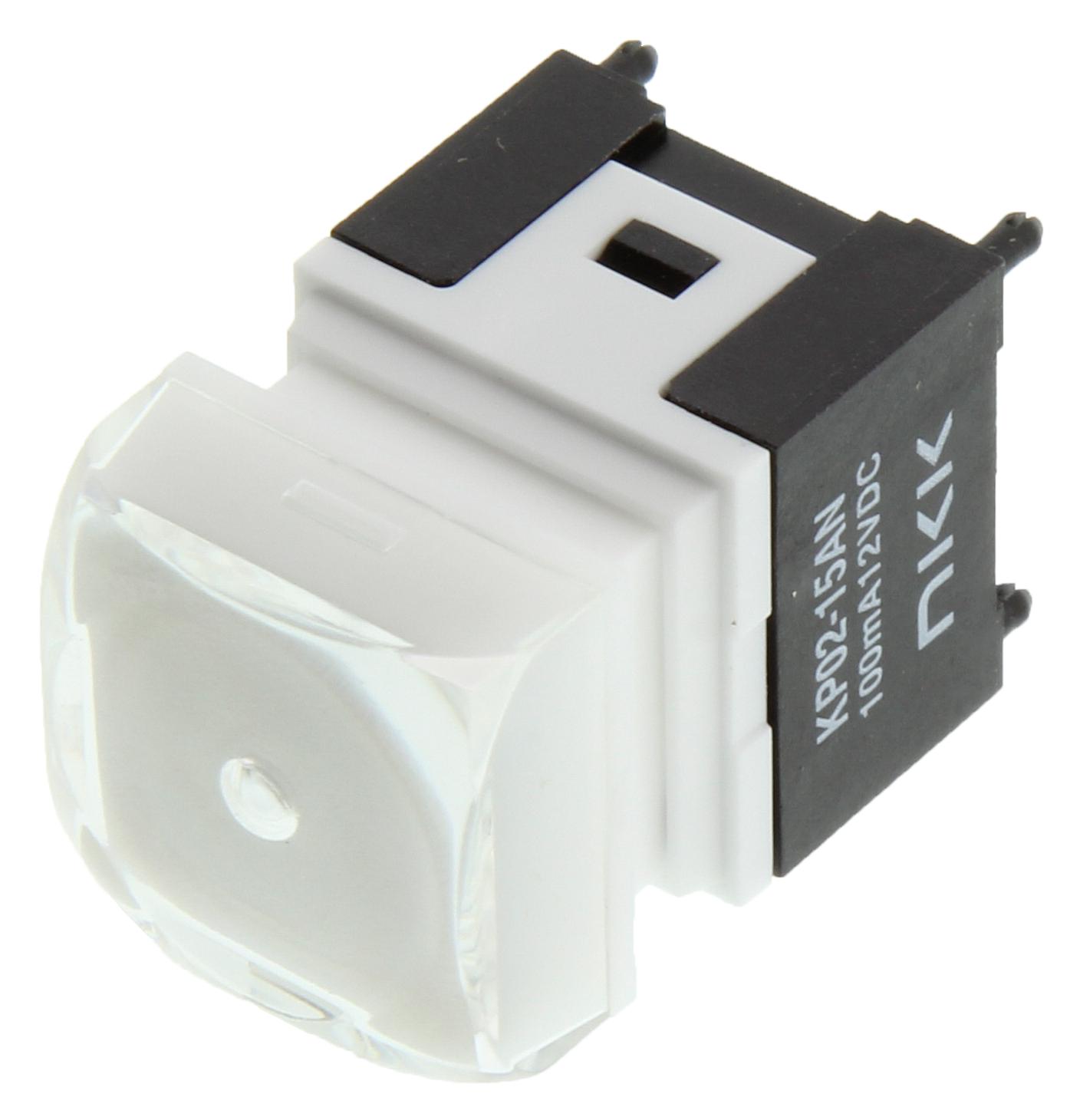

NKK Switches KP0215ANBKG036G2TJB Illuminated Pushbutton Switch
The KP Series illuminated pushbutton is a compact, reliable control device suitable for low-voltage, low-current logic circuits. Featuring super bright LEDs in white, yellow, or blue, it offers a shorter stroke of 0.138 inches and a height of 0.906 inches, making it ideal for control panels. Its gold-plated contacts ensure high durability with a minimum of 5 million operations. Constructed from glass fiber reinforced PBT, it provides excellent environmental resistance, including operating temperature of -25°C to +50°C, humidity, vibration, and shock resilience. Customizable with flat, sculptured, or home key caps, and comes with optional protective guards.
NKK Switches KP0215ANBKG036G2TJB Illuminated Pushbutton Switch Specifications:
- Electrical Capacity: 100mA maximum @ 12V DC
- Contact Resistance: 200 milliohms maximum
- Insulation Resistance: 100 megohms minimum @ 250V DC
- Dielectric Strength: 1,000V AC between contacts, 1 minute; 1,500V AC between contacts and case, 1 minute
- Mechanical Life: 5,000,000 operations minimum
- Electrical Life: 5,000,000 operations minimum
- Nominal Operating Force: 1.6N
- Travel: Pretravel 0.091 inches (2.3mm); Overtravel 0.047 inches (1.2mm); Total Travel 0.138 inches (3.5mm)
- Materials & Finishes: Plunger/Upper Housing - Glass fiber reinforced PBT (UL94V-0); Movable Contact - Gold over copper alloy; Switch Terminals - Brass with fin plating
- Operating Temperature Range: -25°C to +50°C
- Humidity Resistance: 90-95% for 240 hours @ 40°C
- Vibration: 10-55Hz, peak-to-peak amplitude 1.5mm, 1 minute; 3 directions for 2 hours
- Shock: 51G acceleration in 6 directions with shocks in each
- Installation: Cap installation force 1.6N; Soldering - Wave and manual methods; Cleaning with alcohol-based solution
- Standards & Certifications: UL94V-0 flammability, device not UL or CSA recognized, designed for low-voltage logic circuits
Buy the NKK Series KP0215ANBKG036G2TJB Illuminated Pushbutton Switch Part Number
Order the NKK Series KP0215ANBKG036G2TJB illuminated pushbutton switch online now to enhance your control panel with bright LEDs, reliable gold contacts, and customizable caps. Its compact design and high durability make it ideal for automation systems and industrial equipment. With a minimum life of 5 million operations and resistance to environmental factors, this switch ensures long-lasting performance. Easy to install, solder, and clean, making it the perfect choice for professional electronics and control system upgrades.
Get NKK Series KP0215ANBKG036G2TJB today—designed for precision, durability, and flexible control panel solutions.
