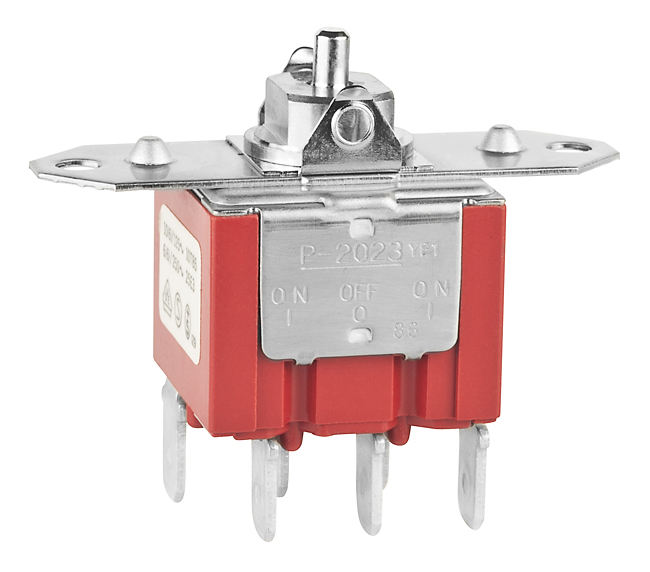

NKK Switches P2023YZ Switch
The DPDT switch with on-off-on positions is ideal for switching multiple circuits or components, offering reliable performance in various electrical applications. Featuring a quick connect terminal, the switch supports 10A at 125V AC ratings, making it suitable for high-current switching tasks. Its robust construction and compliance with international standards ensure durability and safe operation in demanding environments. Designed for ease of installation and operation, this switch is commonly used in control panels, automation, and industrial equipment where reliable circuit switching is essential.
NKK Switches P2023YZ Switch Specifications:
- Poles & Circuits: DPDT, ON - OFF - ON positions
- Terminal Type: Quick Connect
- Terminal Size: .187 inches (4.75 mm)
- Rated Current: 10A at 125V AC
- Voltage Rating: 125V AC
- Dielectric Strength: 4,000V between contacts, 4,000V between contacts & case
- Mechanical Life: 50,000 operations
- Electrical Life: 25,000 operations
- Operating Temperature Range: -10°C to +85°C (+14°F to +185°F)
- Material: Heat resistant resin case/base, stainless steel frame, epoxy sealed terminals
- Standards & Certifications: UL, cULus, VDE, EN 61058-1
- Compliance: UL9AV-0 rated case/base
Buy the Buy NKK Series P Part Number P2023YZ Online
Purchase the NKK Series P P2023YZ double-pole, double-throw switch online today. Designed for durability, high current capacities, and seamless control of multiple circuits, it features quick connect terminals and meets international safety standards. Ideal for industrial automation, control panels, and switching applications, this switch offers reliable operation with a long mechanical and electrical life. Available now for easy online ordering, ensuring quick delivery and dependable performance in your automation or manufacturing setup.
Order your NKK Series P P2023YZ DPDT switch today and ensure reliable circuit control for industrial and automation projects.
