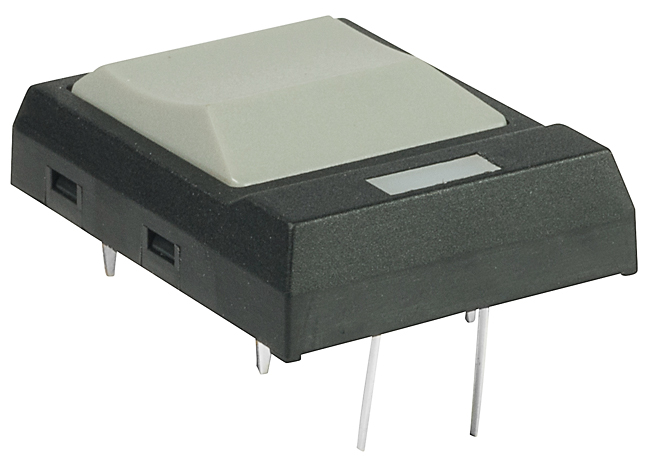

NKK Switches JF15RP3HF Illuminated Tactile Switch
The JF series ultrathin tactile switch features a slim profile of just 0.224 inches (5.7mm) from PCB to top. It offers efficient full face or spot LED illumination in red, green, yellow, orange, or blue with integrated LEDs that are resistant to contamination thanks to rubber seal construction. The switch provides minimal operating force—3.0N for flush and 2.0N for sculptured actuators—short travel and crisp tactile feedback. Suitable for low-voltage, low-current circuits, it supports wave soldering, automated cleaning, and is designed for high reliability and long life in compact electronic applications.
NKK Switches JF15RP3HF Illuminated Tactile Switch Specifications:
- Profile: 0.224 inches (5.7mm) from PCB to top
- LED Colors: Red, Green, Yellow, Orange, Blue
- Illumination Types: Spot and Full Face
- Actuator Types: Square, Round, Sculptured
- Operating Force: 3.0N (flush), 2.0N (sculptured)
- Electrical Capacity: 50mA @ 24V DC
- Contact Resistance: 50 milliohms max
- Insulation Resistance: 500 megohms min @ 250V DC
- Dielectric Strength: 250V AC for 1 minute
- Mechanical Life: 500,000 operations min
- Material: Polyamide body, glass fiber reinforced, rubber seal
- Temperture Range: -25°C to +70°C
- Humidity: 90-95% @ 40°C for 96 hours
- Wave Soldering Compatibility: Yes
- Automation Cleaning: Yes, with precautions
- Terminals: Crimped for secure mounting, .100” (2.54mm) grid
- Certifications: Not UL or CSA tested, designed for logic circuits
- Environmental Resistance: Shock 50G, vibration 1.5mm at 1Hz
- Housing: Black
Buy the NKK Series JF Illuminated Tactile Switch: JF15RP3HF
Order the NKK JF15RP3HF illuminated tactile switch online today for your electronic projects. This ultra-thin switch features a slim profile of just 0.224 inches, offering precise, responsive touch feedback. It supports full face and spot LED illumination in multiple colors, perfect for low-voltage, space-constrained applications. Designed for high reliability, it withstands automated soldering and cleaning processes, ensuring long-term durability. Ideal for compact control panels, keyboards, or other electronic devices requiring dependable tactile interaction with visual indicators.
Get NKK JF15RP3HF today—built for precise, space-saving electronic control with reliable illumination and long-lasting durability.
