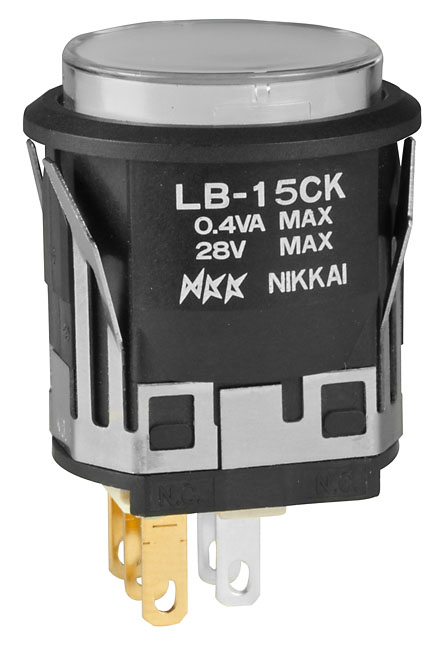

NKK Switches LB15CKG016BJB Illuminated Pushbutton Switch
The standard size illuminated pushbutton switch features snap-in mounting for easy installation and is ideal for control panels. It offers bright LED illumination options including single, bi-color, and super bright LEDs in various colors such as red, green, and blue. The switch is constructed with durable materials like polycarbonate and stainless steel, providing long-lasting performance. It includes a variety of lens and cap options, with panel sealing capabilities meeting IP65 standards. Suitable for various electrical ratings up to 3A at 125/250V AC, it ensures reliable operation in industrial and automation environments.
NKK Switches LB15CKG016BJB Illuminated Pushbutton Switch Specifications:
- Electrical Capacity: 3A @ 125V AC & 250V AC, 0.4VA max. @ 28V AC/DC
- Housing Material: Polycarbonate, stainless steel clips
- Contact Resistance: 50 milliohms max. silver contacts, 100 milliohms max. gold contacts
- Insulation Resistance: 200 megohms @ 500V DC
- Dielectric Strength: 1,000V AC contacts, 1,500V AC contacts & case
- Mechanical Life: 1,000,000 operations minimum
- Electrical Life: 200,000 operations minimum
- Nominal Operating Force: 4.0 N
- Travel: Pretravel 1.5mm, Overtravel 1.5mm, Total travel 3.0mm
- Operating Temperature Range: -25°C to +50°C (illuminated), -25°C to +70°C (non-illuminated)
- Mounting Method: Snap-in
- Ingress Protection: IP65 (panel sealed model)
- LED Voltage/Color: 5V (Red, Amber, Green), 12V, 24V, Blue options available
- Panel Seal: Meets IEC 60529 IP65
- Standards: UL, cULus, CSA recognized when ordered with markings
Buy the NKK Series LB Illuminated Pushbutton: LB15CKG016BJB
Enhance your control panel with this durable, illuminated pushbutton switch featuring snap-in mounting, high electrical ratings, and IP65 sealing. Offered with various LED colors including bright red, green, and blue, and suitable for industrial automation. Its long mechanical and electrical life guarantee sustained performance. Easy to install and maintain with panel-sealed design meeting IP65 standards, this switch is perfect for demanding environments requiring reliable operation and visual indicators. Available now for quick online purchase, ensuring efficient project deployment.
Buy NKK LB15CKG016BJB illuminated pushbutton now and experience unmatched reliability and high-performance control for your automation projects.
Frequently Asked Questions
Where can I buy NKK Switches LB15CKG016BJB?
You can click on the BUY or RFQ button to purchase LB15CKG016BJB from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB15CKG016BJB?
You can download the LB15CKG016BJB datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB15CKG016BJB?
NKK Switches
