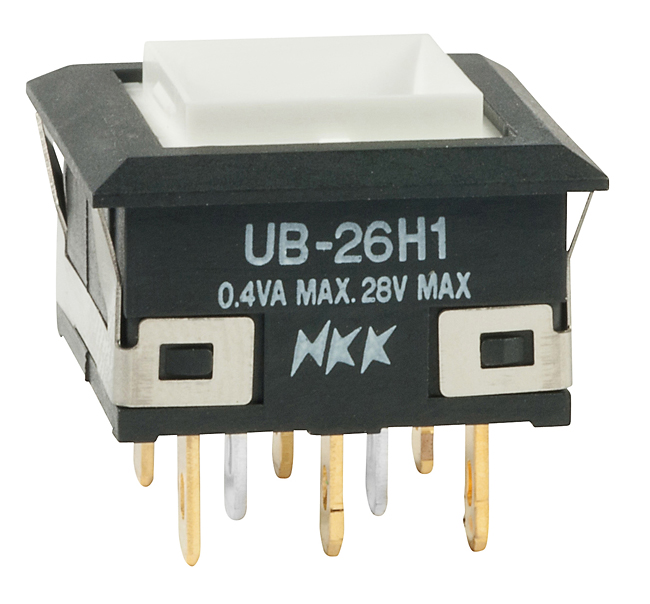

NKK Switches UB26KKG015C Illuminated Pushbutton Switch
A low-profile, illuminated pushbutton switch with PCB mounting and solder terminals, designed for compact user interfaces requiring reliable operation and bright illumination, available in various LED colors and optional protective guards for enhanced durability and visibility in tight spaces.
NKK Switches UB26KKG015C Illuminated Pushbutton Switch Specifications:
- Switch Type: Illuminated pushbutton
- Mounting: PCB mount and solder terminals
- Poles & Circuits: Single & Double Pole, SPDT
- Current Rating: 5A at 125/250V AC, 0.4VA max at 28V AC/DC
- Contact Resistance: 50 milliohms max for silver; 100 milliohms max for gold
- Insulation Resistance: 200 megohms min at 500V DC
- Dielectric Strength: 1,000V AC for 1 min between contacts; 1,500V AC for 1 min contacts & case
- Mechanical Life: 1,000,000 operations
- Electrical Life: 200,000 operations with resistive load
- Operating Temperature Range: -25°C to +50°C for illuminated, -20°C to +70°C for non-illuminated
- LED Color Options: Red, Amber, Green, White, Blue
- LED Features: Bright or super bright, polarized, with resistors or external power source required
- Panel Thickness: 0.039” ~ 0.126” (1.0mm ~ 3.2mm)
- Housing Material: UL94V-0 polyamide, with options for protective guards
- Certifications: UL recognized, CSA certified when ordered with marking
Buy the NKK Series UB Switch: UB26KKG015C
Enhance your control panels with the reliable and space-saving NKK Series UB illuminated pushbutton switch. Featuring bright LEDs, robust construction, and easy PCB or solder mounting, this switch is perfect for applications requiring clear indication and durable operation. Choose from various LED colors and optional protective guards for added visibility and protection in tight or demanding environments. Built to meet industry standards, this switch ensures long-lasting performance and simplified installation for industrial, automation, and control systems. Buy online today for trusted quality.
Order your NKK Series UB26KKG015C illuminated pushbutton switch today and give your projects the dependable quality they deserve.
