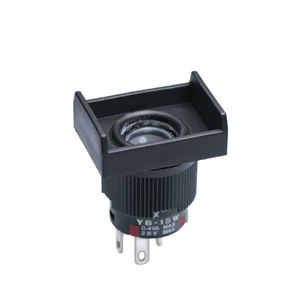

NKK Switches YB15WRKG01 Illuminated Pushbutton Control
This compact, panel-mounted illuminated pushbutton switch features a short body design with a sealed housing for reliable operation in industrial control panels. It offers visual feedback through built-in LED illumination, with options for various lens and color configurations. Equipped with durable materials such as polyamide housing and glass fiber reinforced components, it withstands harsh environments, including IP65 sealing standards. Suitable for automation, machinery, and control systems, it provides long mechanical and electrical life, ensuring dependable performance in demanding industrial applications.
NKK Switches YB15WRKG01 Illuminated Pushbutton Control Specifications:
- Housing/Bezel: Polyamide, UL94V-0
- Certification: IP65 IEC60529 standard, UL, CSA recognized when ordered with marking
- Electrical Capacity (Resistive Load): 3A @ 125/250V AC, 0.4VA @ 28V AC/DC
- Contact Resistance: 50 milliohms max for silver, 100 milliohms max for gold
- Insulation Resistance: 200 megaohms minimum at 500V DC
- Dielectric Strength: 1,000V AC between contacts, 1,500V AC between contacts & case
- Mechanical Life: 1,000,000 operations min. (momentary circuit), 200,000 operations min. (maintained circuit)
- Operating Temperature Range: -25°C to +50°C for illuminated models, -25°C to +70°C for nonilluminated
- Mounting Torque: 0.785 Nm maximum
- Panel Thickness Range: 0.020" to 0.150" (bushing mount), 0.020" to 0.091" (snap-in mounting)
- Ingress Protection: IP65
- Materials: Housing/polyamide, bezel/Polycarbonate, contacts/phosphor bronze, lamp terminal/stainless steel
- Switch Terminals: Solder lug or quick connect options
- Other Ratings: UL Recognized, CSA Certified when ordered with marking on switch
Buy the NKK Series YB – Reliable Control Switches for Industrial Applications
Purchase the NKK Series YB illuminated pushbutton switch online today and experience reliable operation for industrial control panels. Designed with durable materials like polyamide and glass fiber reinforced components, it ensures long-lasting performance in harsh environments. Its compact, sealed design meets IP65 standards, providing dust and splash resistance. With built-in LED indicators for visual feedback, this switch is ideal for automation machinery, manufacturing, and control systems. Order now for quick delivery, excellent quality, and competitive pricing.
Get NKK Series YB pushbutton switch today—built for precision, durability, and easy panel mounting in industrial control systems.
Frequently Asked Questions
Where can I buy NKK Switches YB15WRKG01?
You can click on the BUY or RFQ button to purchase YB15WRKG01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part YB15WRKG01?
You can download the YB15WRKG01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of YB15WRKG01?
NKK Switches
