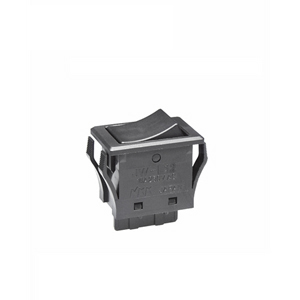

NKK Switches JWL12RAA Industrial Power Rocker Switch
A power rocker switch designed for reliable operation with a snap-in mounting feature, suitable for various electronic and electrical applications. It features high inrush current capacity of 16A at 125/250V AC, with panel seal versions meeting IP67 standards for dust and water resistance. Constructed with UL94V-0 materials, it includes enhanced insulation barriers, epoxy sealed terminals for protection against contaminants, and a variety of terminal and barrier options. Ideal for industrial control, machinery, and automation systems requiring robust, high-current switching.
NKK Switches JWL12RAA Industrial Power Rocker Switch Specifications:
- Power Capacity: 10A @ 125/250V AC; 16A @ 125/250V AC; 5A @ 72V DC
- Contact Resistance: 10 milliohms maximum
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 2,000V AC minimum between contacts for 1 minute; 4,000V AC minimum between contacts and case for 1 minute
- Mechanical Life: 25,000 operations minimum
- Electrical Life: 25,000 operations minimum
- Operating Temperature Range: -25°C through +70°C (JWM & JWL); -25°C through +85°C (panel seal models JWMW & JWLW)
- Operating Force: JWM & JWMW 3.92N (single pole), 7.84N (double pole); JWL 5.00N, JWLW 10.00N
- Angle of Throw: 26°
- Housing Material: Polyphenylene ether (UL94V-0)
- Housing Color: Black, Ivory, Gray
- Barrier Types & Colors: No barrier, with barrier; Barrier material: Polyamide Finish: Matte
- Terminals: Solder lug and quick connect options, diameter: 2.8mm and 4.75mm respectively
- Sealing & Certifications: IP67 compliant for panel seal models; UL94V-0 rated housing and contact materials
- Environmental Resistance: Humidity 90-95% for 96 hours, vibration 1.5mm amplitude 10-55Hz, shock 50G
- Standards & Certifications: UL, CSA, VDE approved models; recognized ratings for various certifications
Buy the NKK JWL12RA – Reliable Industrial Rocker Switch for High Inrush Loads
Order the NKK JWL12RA industrial power rocker switch online today and enjoy fast shipping, dependable high current capacity, IP67 dust and water resistance, and UL certification. Perfect for automation, machinery, and control panels requiring robust and reliable switching performance. This versatile switch features epoxy sealed terminals, insulation barriers, and a snap-in design for easy installation. Enhance your systems with a high-quality switch that ensures safety, durability, and long-term operation across demanding industrial environments. Buy now to ensure seamless control solutions!
Buy NKK JWL12RA now and experience unmatched reliability and performance in industrial control and automation systems.
Frequently Asked Questions
Where can I buy NKK Switches JWL12RAA?
You can click on the BUY or RFQ button to purchase JWL12RAA from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part JWL12RAA?
You can download the JWL12RAA datasheet or visit the NKK Switches website for support.
Who is the manufacturer of JWL12RAA?
NKK Switches
