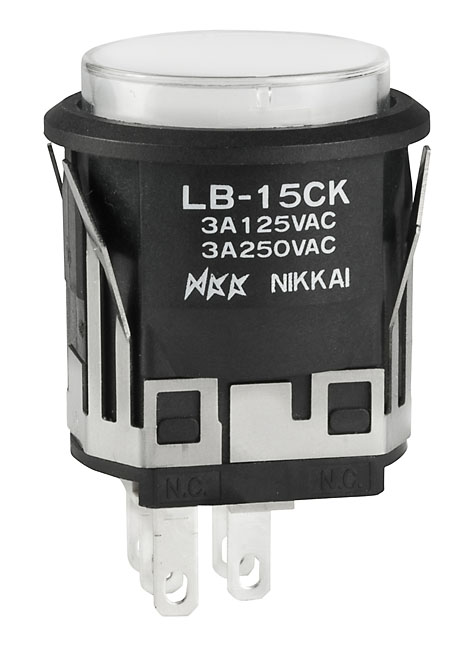

NKK Switches LB15CKW016FJB Illuminated Pushbutton
A standard-sized, illuminated pushbutton switch designed for quick snap-in mounting, providing bright LED illumination for enhanced visibility. Ideal for control panels, machinery, and electronic systems, the switch features durable materials, IP65 sealing for protection against dust and water, and reliable electrical ratings suitable for industrial use. It offers easy installation with epoxy-sealed terminals, multiple LED options, and a robust housing to withstand harsh environments, making it suitable for various automation and control applications requiring clear visual indication and long-term performance.
NKK Switches LB15CKW016FJB Illuminated Pushbutton Specifications:
- Housing Material: Polycarbonate, Glossy Finish
- Installation: Snap-in Mount
- Illumination: Bright LED with various color options
- Voltage Rating: 3A @ 125/250V AC
- Current: 0.4VA @ 28V AC/DC maximum
- Seal: IP65 (NEMA 4 & 13 compliant)
- Operating Temperature Range: -25°C to +50°C
- Housing Color: Black
- Dimensions: Standard size for quick snap-in mounting
- Electrical Resistance: Contact Resistance max 50 milliohms (silver contacts)
- Insulation Resistance: Min 200 megohms @ 500V DC
- Dielectric Strength: 1000V AC for 1 minute
- Mechanical Life: 1,000,000 operations
- Electrical Life: 200,000 operations
- Nominal Operating Force: Not specified
- Travel: Not specified
Buy the NKK LB15CKW – Reliable Illuminated Pushbutton for Industrial Applications
Order the NKK LB15CKW illuminated pushbutton online today to enhance your control system’s visibility and durability. With snap-in mounting, bright LEDs in multiple colors, IP65 sealing for dust and water resistance, and a long lifespan, this switch is perfect for industrial, machinery, and electronic control applications. Easy to install and designed to withstand harsh environments, it ensures reliable operation and clear visual indication. Invest now to improve your system’s performance with a trusted, high-quality control component.
Buy NKK LB15CKW illuminated pushbutton now and experience unmatched reliability and performance for your control panels and automation needs.
Frequently Asked Questions
Where can I buy NKK Switches LB15CKW016FJB?
You can click on the BUY or RFQ button to purchase LB15CKW016FJB from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB15CKW016FJB?
You can download the LB15CKW016FJB datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB15CKW016FJB?
NKK Switches
