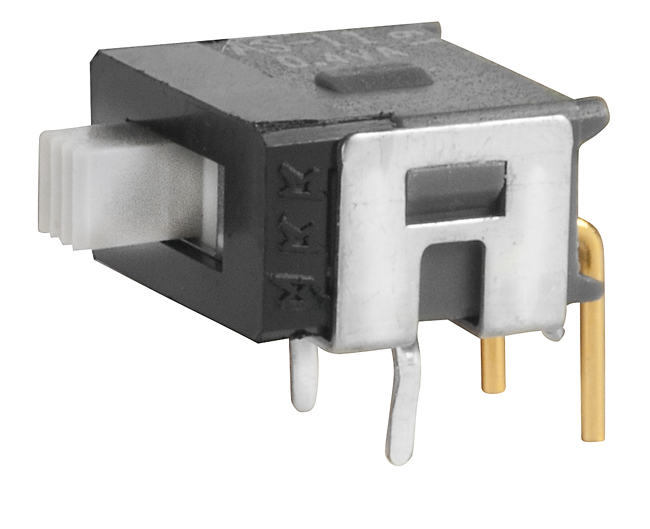

NKK Switches AS11AH Subminiature Slide Switch
This is a subminiature slide switch designed for compact electronic applications, offering reliable on/off switching with a small form factor. It features a space-saving size (1/3 of Series M switches), with an award-winning STC contact mechanism ensuring smooth, positive detent actuation, enhanced contact stability, and high logic-level reliability. The switch includes various actuator lengths, a black antistatic superstructure, rugged molded terminals resistant to flux and solvents, and conforms to standard PC board grid spacing. Ideal for low-voltage, low-current circuits requiring precise, durable control.
NKK Switches AS11AH Subminiature Slide Switch Specifications:
- Mechanical Life: 50,000 operations minimum
- Electrical Capacity: 0.4VA maximum @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC for 1 minute minimum
- Operating Temperature Range: -30°C to +85°C
- Humidity: 90-95% for 192 hours @ 40°C
- Combined Dimensions: 2.54mm x 2.54mm terminal spacing, various actuator lengths
- Materials: Glass fiber reinforced polyamide body, carbon blended polyacetal, tin-plated phosphor bronze contacts, gold plating options
- Vibration & Shock: 1.5mm amplitude, 50G acceleration per IEC standards
- Soldering: Wave, manual, support recommendations in supplement
- Standards & Certifications: Not UL or CSA recognized, designed for low-voltage, logic-level use
Buy the NKK Series AS Subminiature Slides: AS11AH
Order the NKK AS11AH subminiature slide switch online today for your electronic projects. This space-saving switch offers reliable on/off control, durable contacts, and a compact design ideal for logic-level circuits. Perfect for applications requiring high stability, low current, and long-lasting performance, it features antistatic protective structures, various actuator lengths, and conforms to standard PCB spacing. Ensure easy installation and consistent performance in your electronic assemblies—buy online now for swift delivery and quality assurance.
Get NKK AS11AH subminiature slide switch today—built for space-efficient, reliable low-voltage control in electronic devices.
Frequently Asked Questions
Where can I buy NKK Switches AS11AH?
You can click on the BUY or RFQ button to purchase AS11AH from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part AS11AH?
You can download the AS11AH datasheet or visit the NKK Switches website for support.
Who is the manufacturer of AS11AH?
NKK Switches
