NKK Switches UB15RKW035DDD Low Profile Pushbutton Switch
A low-profile illuminated pushbutton switch suitable for PC board mounting and soldering. Designed for easy installation in various electronic enclosures where space is limited.
NKK Switches UB15RKW035DDD Low Profile Pushbutton Switch Specifications:
- Poles & Circuits: 1 SPDT
- Mounting Types: PCB Mounting, Snap-in Mounting
- Cap Types & Colors: Full Face Illuminated Cap, Square, Rectangular, Red, Amber, Green, White, Blue, Clear
- LED: Bright, Super Bright, with forward voltage 1.85V to 3.2V and maximum current 30mA
- Electrical Rating: 5A at 125/250V AC, 0.4VA max at 28V AC/DC
- Contact Resistance: 50 milliohms for silver, 100 milliohms for gold
- Insulation Resistance: 200 megaohms minimum at 500V DC
- Dielectric Strength: 1,000V AC contact-to-contact, 1500V AC contact-to-case
- Environmental: Operating temperature -25°C to +50°C, humidity 95% for 96 hours at 40°C, shock resistance 50G
- Materials: Housing/Bezel and Base made of UL94V-0 flame-rated plastic, contacts of silver alloy or copper with gold plating, stainless steel spring
- Mechanical Life: 1,000,000 operations
- Soldering: Wave or manual soldering, profile specified in datasheet
- Certification: UL recognized, CSA certified, suitable for industrial and electronic applications

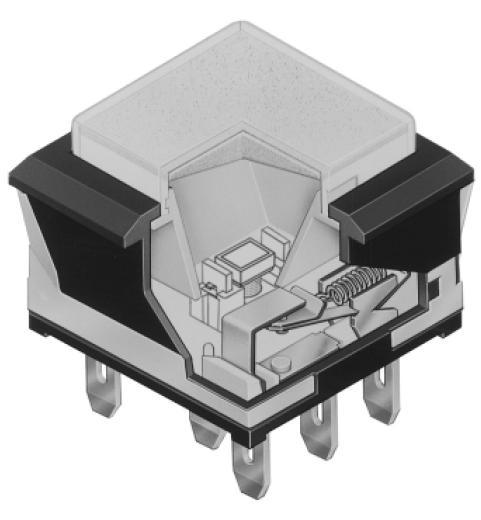

Buy the Buy NKK Low Profile Pushbuttons Part Number UB15RKW035DDD Online
Experience seamless ordering of the NKK low-profile illuminated pushbutton switch UB15RKW035DDD online. Featuring durable construction, high electrical ratings, and a compact design, ideal for tight spaces in electronic devices and control panels. Easy to install with PCB or snap-in mounting options, this switch offers reliable actuation, excellent illumination, and long operational life. Perfect for industrial, automation, and electronic applications, you can trust its safety certifications and superior performance. Order now to ensure your project benefits from dependable switching solutions.
Order your NKK Series UB15RKW035DDD compact illuminated pushbutton today and enhance your electronic projects with reliable, space-saving control switches.
Frequently Asked Questions
Where can I buy NKK Switches UB15RKW035DDD?
You can click on the BUY or RFQ button to purchase UB15RKW035DDD from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB15RKW035DDD?
You can download the UB15RKW035DDD datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB15RKW035DDD?
NKK Switches
