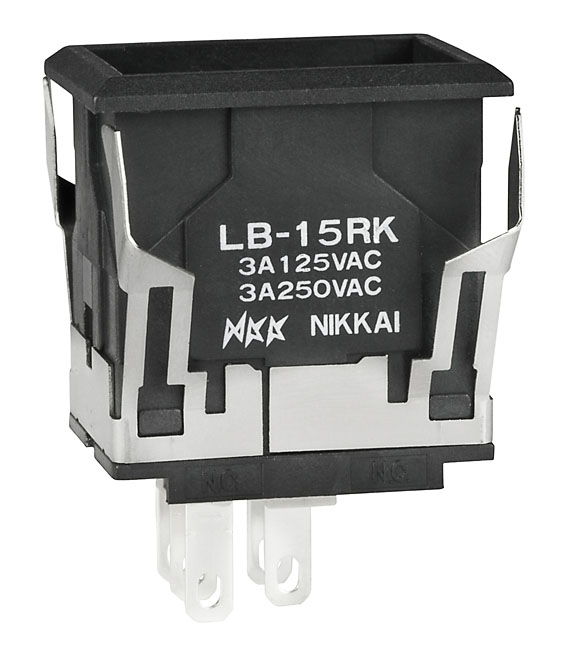

NKK Switches LB15RKW01 Illuminated Pushbutton Switch
The Standard Size Pushbutton Switch with snap-in mounting provides bright, full surface illumination with options for LED or incandescent lighting. Features include secure panel mounting with stainless steel clips, panel sealed IP65 rating, and long electrical life with snap-action contacts. The switch offers various LED colors, including red, green, and blue, with choices for resistor and lens types. It is rated for 3A at 125/250V AC, with durable polyamide housing, and is suitable for industrial control panel applications, ensuring reliable performance and easy installation.
NKK Switches LB15RKW01 Illuminated Pushbutton Switch Specifications:
- Electrical Capacity: 3A @ 125V AC & 250V AC, 0.4VA max. @ 28V AC/DC
- Contact Resistance: 50 milliohms max. for silver, 100 milliohms max. for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC contact to case, 1-minute; 1,500V AC contacts to case, 1-minute
- Mechanical Life: 1,000,000 operations minimum for momentary, 200,000 for maintained circuit
- Nominal Operating Force: 4.9N maximum on cap, 52.95N on connector
- Travel: Pretravel 1.5mm, Overtravel 1.5mm, Total travel 3.0mm
- Housing: Glass fiber reinforced polyamide (UL94V-0), bushings stainless steel
- Environmental: Operating temp -25°C to +50°C (illuminated), -25°C to +70°C (non-illuminated), 95% humidity at 40°C
- Installation force: Cap installation 3.92N, quick connect force 4.9N, soldering temperature and time as per profile
- Standards: UL Recognized (File No. E44145), CSA Certified (File No. 023535_0_000), Flammability UL 94V-0
- Panel Seal: Meets IP65, dust and water resistant
- Switch Construction: Snap-action contact, nonshorting, break-before-make
- LED Specifications: Bright, super bright options, various colors, with or without resistors, LED polarity marked, operating at 25°C
Buy the NKK Series LB Illuminated Pushbutton Switch: LB15RKW01
Order the NKK LB15RKW01 illuminated pushbutton switch online today to ensure reliable operation in your control systems. Featuring bright illumination, IP65 sealing, durable construction, and long electrical life, this switch is ideal for panel applications requiring sturdy, high-quality components. Its quick snap-in mounting simplifies installation, while various LED color options provide visual status indication. With UL recognition and CSA certification, it guarantees safety and compliance, making it the perfect choice for industrial machinery, automation, or control panels seeking dependable performance and ease of use.
Buy NKK LB15RKW01 illuminated pushbutton switch now and experience unmatched reliability and performance in industrial control panels.
Frequently Asked Questions
Where can I buy NKK Switches LB15RKW01?
You can click on the BUY or RFQ button to purchase LB15RKW01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB15RKW01?
You can download the LB15RKW01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB15RKW01?
NKK Switches
