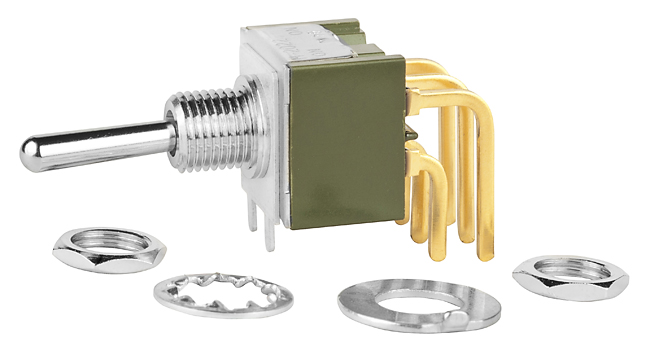

NKK Switches M2022SA1G30 Miniature Toggle Switch
This miniature toggle switch offers reliable performance for precise control in electronic circuits. Designed with a compact size, it features high insulation barriers and robustness for durability. The switch supports multiple poles and circuits, with optional locking levers and various terminal configurations. Crafted with brass, nickel, and chrome finishes, it adheres to UL and CSA standards. Suitable for applications requiring electrical and mechanical reliability, its design includes sealed terminals, anti-rotation features, and IP67 sealing options for splashproof environments. It is ideal for industrial, automation, and electronic control systems.
NKK Switches M2022SA1G30 Miniature Toggle Switch Specifications:
- Poles: 1, 2, 3, or 4 poles
- Switch rating: 6A at 125V AC; 3A at 250V AC; 0.4VA max at 28V DC
- Material: Brass with chrome plating, stainless steel support bracket
- Contact Material: Silver over Silver, Gold over Brass or Copper
- Dielectric Strength: 1,500V
- Insulation Resistance: Minimum 1,000 megohms at 500V DC
- Mechanical Life: 100,000 operations
- Electrical Life: 50,000 operations
- Operating Temperature: -30°C to +85°C
- Vibration Resistance: 10-55Hz with 1.5mm amplitude
- Shock Resistance: 50G acceleration
- Sealing: IP67 splashproof options available
- Mounting Torque: 3.0Nm for large bushings, 1.5Nm for standard units
- Soldering: Wave soldering and manual soldering compatible
- Standards & Certifications: UL, CSA recognized when ordered with markings
- Terminals: Right angle PC (1-4 pole), vertical PC options
- Bushing: Threaded or smooth types, with keyway, various sizes
- Finish: Nickel plating, chrome, optional finishes available
Buy the NKK Series M Miniature Toggle Switch: M2022SA1G30
Purchase the NKK Series M Miniature Toggle Switch online today and experience reliable switching performance for your electronic and industrial projects. Designed for maximum durability with high insulation barriers and sealed terminals, this switch ensures consistent operation across multiple poles and circuits. Its compact form factor makes it suitable for tight spaces, while compliance with UL and CSA standards guarantees safety and quality. Whether for automation, control panels, or circuit testing, buy this robust toggle switch online and ensure your application is equipped with dependable switching components.
Get NKK Series M Miniature Toggle Switch today—built for precise control and long-lasting durability in electronic and industrial applications.
Frequently Asked Questions
Where can I buy NKK Switches M2022SA1G30?
You can click on the BUY or RFQ button to purchase M2022SA1G30 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part M2022SA1G30?
You can download the M2022SA1G30 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of M2022SA1G30?
NKK Switches
