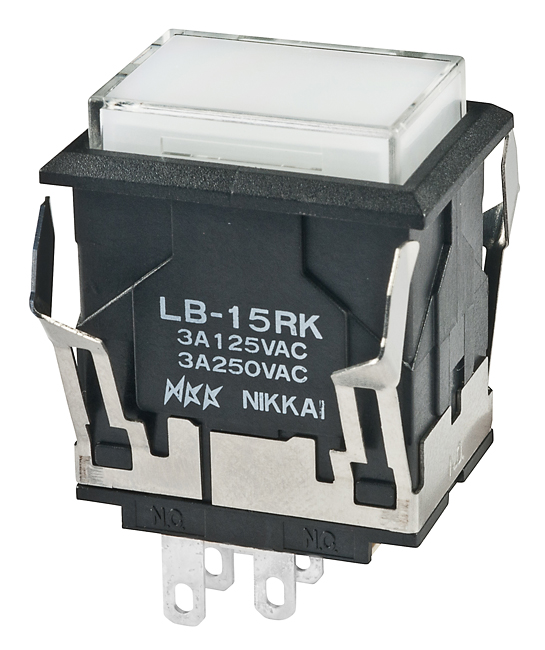

NKK Switches LB15RKW015F05JB Illuminated Pushbutton Switch
Standard size illuminated pushbutton switch with snap-in mounting, designed for panel mounting in industrial control and automation applications. Features bright LED illumination with various color options, durable polycarbonate lens, and reliable snap-action contacts for long electrical life. Suitable for panel sealing up to IP65, with options for neon, incandescent, or LED lamps. The switch operates at 3A rated current, 125V/250V AC, and includes mounting hardware compatible with standard panel cutouts, providing dependable operation in demanding environments.
NKK Switches LB15RKW015F05JB Illuminated Pushbutton Switch Specifications:
- Electrical Capacity: 3A @ 125V / 250V AC, 0.4VA max. @ 28V AC/DC
- Contact Resistance: 50 milliohms max. (silver), 100 milliohms max. (gold)
- Insulation Resistance: 200 megohms min. @ 500V DC
- Dielectric Strength: 1,000V AC contact-to-contact, 1,500V AC contact-to-case
- Mechanical Life: 1,000,000 operations minimum
- Electrical Life: 200,000 operations minimum
- Operating Temperature: -25°C to +50°C (illuminated), -25°C to +70°C (nonilluminated)
- Pretravel: 0.059” (1.5mm), Overtravel: 0.059” (1.5mm), Total Travel: 0.118” (3.0mm)
- Housing: Glass fiber reinforced polyamide (UL94V-0)
- Switch Terminals: Solder lug and .110” quick connect, epoxy sealed
- Panel Seal: IP65 (IEC60529 standards)
- Housing Color: Black
- Mounting: Snap-in clips for secure panel installation
- Lamp Options: LED (various colors), neon, incandescent; with optional resistor or resistorless configurations
Buy the NKK LB15RKW015F05JB – Reliable Illuminated Pushbutton for Industrial Applications
Purchase the NKK LB15RKW015F05JB illuminated pushbutton switch online today and ensure reliable operation in demanding environments. Featuring snap-in mounting, IP65 sealing, and bright LED options in various colors, this switch is perfect for industrial control and automation systems. It offers long electrical and mechanical life, with different lamp configurations including neon, incandescent, and LED. Its robust polyamide housing and epoxy sealed terminals provide durability and protection against dust and moisture, making it an excellent choice for panel mounting in harsh conditions.
Order your NKK Series LB15RKW015F05JB illuminated pushbutton today and enhance your automation projects with dependable control components.
Frequently Asked Questions
Where can I buy NKK Switches LB15RKW015F05JB?
You can click on the BUY or RFQ button to purchase LB15RKW015F05JB from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB15RKW015F05JB?
You can download the LB15RKW015F05JB datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB15RKW015F05JB?
NKK Switches
