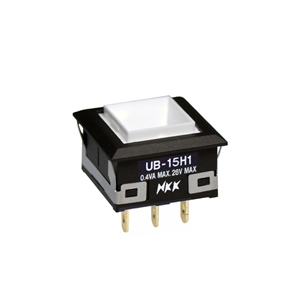

NKK Switches UB15KKG015F Low Profile Pushbutton
A low-profile illuminated pushbutton switch designed for easy operation. It features both pin mounting (PC) and solder termination options for versatile installation. Suitable for various electronic and control panel applications.
NKK Switches UB15KKG015F Low Profile Pushbutton Specifications:
- Poles & Circuits: Single Pole Single Throw (SPST), SPDT
- Contact Ratings: 5A @ 125/250V AC, 0.4VA max @ 28V AC/DC
- Mechanical Life: 1,000,000 operations
- Electrical Life: 200,000 operations at 5A load
- Operating Temperature Range: -20°C to +70°C
- Housing Material: UL94V-0 glass fiber reinforced polyamide
- Contact Material: Silver alloy or copper with gold plating
- Cap Colors & Types: Red, amber, green, white, blue; full face, spot illumination
- LED Forward Voltage: 1.85V to 3.2V depending on color
- LED Current: Typical 20-30mA
- Panel Thickness: 0.039” to 0.126” (1.0mm to 3.2mm)
- Mounting: PCB or solder lug
- Dimensions: Approximately 0.51 in x 0.51 in for square models; 0.60 in x 0.39 in for rectangular models
- Certifications: UL Listed, CSA Certified (order with markings)
Buy the NKK Series UB Low Profile Pushbuttons: UB15KKG015F
Upgrade your electronic projects with the NKK Series UB low profile illuminated pushbutton. Featuring versatile mounting options, durable construction, and bright LED illumination, it ensures reliable operation in tight spaces. Ideal for control panels, machinery, and electronic equipment, this switch offers high electrical and mechanical lifespan with certifications for safety and quality. Easy to install and available for online purchase, it guarantees dependable performance for diverse industrial and consumer applications.
Order your NKK Series UB15KKG015F low profile illuminated pushbutton today and enhance your control panel with reliable, durable switches designed for professional applications.
Frequently Asked Questions
Where can I buy NKK Switches UB15KKG015F?
You can click on the BUY or RFQ button to purchase UB15KKG015F from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB15KKG015F?
You can download the UB15KKG015F datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB15KKG015F?
NKK Switches
