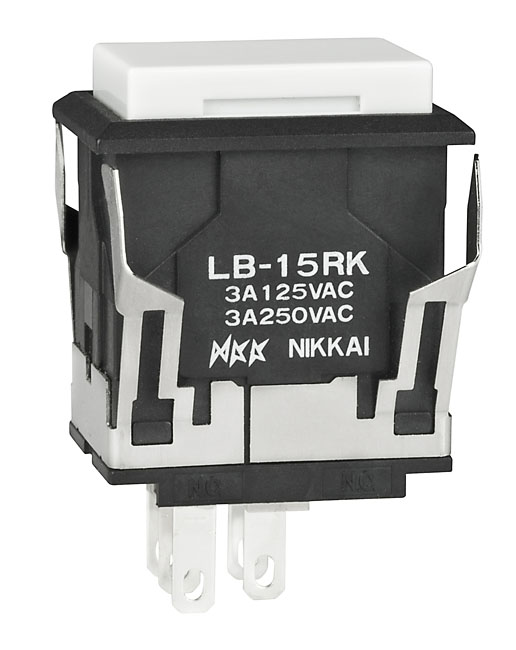

NKK Switches LB15RKW01B Illuminated Pushbutton
The standard size illuminated pushbutton switch features snap-in mounting, bright full surface illumination, and various LED options including super bright, bicolor, and single color LEDs. Designed for panel sealing, it offers durable construction with stainless steel clips and options for LED, incandescent, or neon lamps. The switch includes tactile and audible feedback, long electrical life, and compatibility with various panel thicknesses. It meets IP65 standards and features easy installation, with options for custom legends and different lens colors for versatile industrial controls.
NKK Switches LB15RKW01B Illuminated Pushbutton Specifications:
- Housing Material: Glass fiber reinforced polyamide (UL94V-0)
- Contact Material: Silver alloy or copper with gold plating
- Power Rating: 3A @ 125V or 250V AC, 0.4VA max @ 28V AC/DC
- Electrical Resistance: Contact resistance maximum 50 milliohms for silver, 100 milliohms for gold
- Insulation Resistance: Minimum 200 megohms @ 500V DC
- Dielectric Strength: 1000V AC minimum between contacts, 1500V AC minimum between contacts & case
- Mechanical Life: 1,000,000 operations for momentary circuit, 200,000 for maintained circuit
- Operating Temperature Range: -25°C to +50°C (illuminated), -25°C to +70°C (non-illuminated)
- Pretravel & Overtravel: 1.5mm, Total Travel: 3.0mm
- Panel Seal: Meets IP65 (IEC 60529), similar to NEMA 4 & 13
- Mounting: Stainless steel clips for secure panel attachment
- Panel Thickness Compatibility: 1.0mm to 4.0mm, seals effective for panel thickness up to 3.5mm
- Environmental Resilience: 50G shock, 96 hours humidity at 40°C, vibration resistance
- Standards & Certifications: Recognized UL, cUL, and CSA when ordered with markings
Buy the NKK Series LB – Reliable Industrial Pushbuttons for Control Panels
Order NKK Series LB illuminated pushbuttons today for reliable operation in industrial control panels. Featuring durable snap-in Mounting, IP65 sealing, bright illumination options, and long mechanical life, these switches are ideal for demanding environments. Choose from various LED colors including super bright, bi-color, or single color LEDs for enhanced visibility. Easy installation with stainless steel clips, panel sealing against dust and water, and certification recognition ensure top performance and safety in industrial automation and machinery controls. Buy online now for quick delivery and excellent quality.
Get NKK Series LB illuminated pushbuttons today—built for precision and resilience in demanding industrial environments.
Frequently Asked Questions
Where can I buy NKK Switches LB15RKW01B?
You can click on the BUY or RFQ button to purchase LB15RKW01B from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB15RKW01B?
You can download the LB15RKW01B datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB15RKW01B?
NKK Switches
