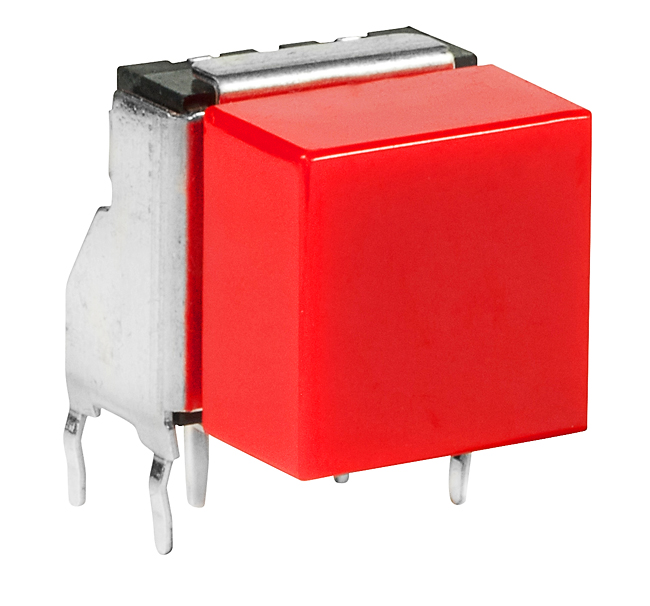

NKK Switches JB15KH6C Tactile Push-Button Switch
The JB series low-profile tactile push-button switch offers reliable tactile feedback with a compact design, ideal for electronic applications requiring precision. Constructed with a glass fiber reinforced PBT actuator and a PBT case, it features a sealed rubber seal to prevent contact contamination. Rated for 50mA at 24V DC in standard operating force models, it supports automated soldering and cleaning processes. With a mechanical life of up to 5 million operations, the switch provides consistent performance in low-voltage circuits, ensuring long-lasting durability and excellent environmental resistance.
NKK Switches JB15KH6C Tactile Push-Button Switch Specifications:
- Electrical Capacity: 50mA @ 24V DC (standard force), 125mA @ 24V DC (high force)
- Contact Resistance: 50 milliohms max
- Insulation Resistance: 500 megohms min @ 250V DC
- Dielectric Strength: 250V AC for 1 minute
- Mechanical Life: 5,000,000 operations min
- Operating Temperature Range: 25°C to +70°C
- Humidity: 90-95% for 240 hours @ 40°C
- Vibration: 10-55Hz, peak-to-peak 1.5mm for 1 min
- Shock: 50G in 6 directions, 5 shocks each
- Sealing: IP67 (IEC60529)
- Actuator: Glass fiber reinforced PBT
- Case: UL94V-0 rated PBT
- Terminals: Slanted, molded-in with spring action
- Mounting: PCB through-hole, .100 inch spacing
- Soldering: Wave and manual soldering supported
- Material Finishes: Silver plated brass for contacts, polyamide for casing
Buy the NKK Series JB Low Profile Process Sealed Tactiles: JB15KH6C
Enhance your electronic device with our high-quality tactile switch designed for PCB mounting, sealed for environmental protection. The JB series switch offers reliable tactile feedback, supporting automated soldering and cleaning processes. Its rugged construction ensures durability with up to 5 million operations, making it ideal for compact and demanding applications. Stock this innovative switch today and enjoy seamless integration into your designs, ensuring longevity, consistency, and reliable circuit control in various electronic projects.
Order your NKK Series JB Low Profile Process Sealed Tactiles JB15KH6C today and give your projects the dependable quality they deserve, ensuring long-lasting performance and reliable tactile feedback.
Frequently Asked Questions
Where can I buy NKK Switches JB15KH6C?
You can click on the BUY or RFQ button to purchase JB15KH6C from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part JB15KH6C?
You can download the JB15KH6C datasheet or visit the NKK Switches website for support.
Who is the manufacturer of JB15KH6C?
NKK Switches
