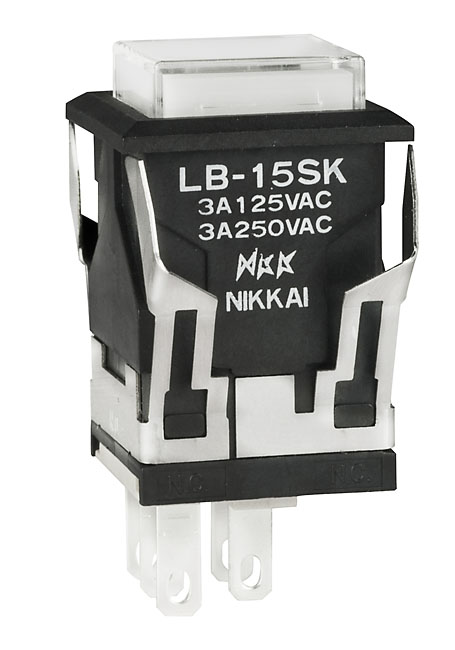

NKK Switches LB15SKW0101JB Illuminated Pushbutton Switch
Standard-sized illuminated push-button switch with snap-in mounting mechanism. Suitable for use in various control panels and electronic applications requiring easy operation and visual indication.
NKK Switches LB15SKW0101JB Illuminated Pushbutton Switch Specifications:
- Electrical Capacity (Resistive Load): 3A @ 125V AC or 3A @ 250V AC or 0.4VA @ 28V AC/DC maximum
- Contact Resistance: 50 milliohms maximum for silver; 100 milliohms maximum for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 minute, 1,500V AC between contacts & case for 1 minute
- Mechanical Life: 1,000,000 operations minimum for momentary circuit, 200,000 operations minimum for maintained circuit
- Nominal Operating Force: 4.0N maximum downward force on cap
- Contact Timing: Nonshorting (break-before-make)
- Travel: Pretravel 0.059” (1.5mm); Overtravel 0.059” (1.5mm); Total Travel 0.118” (3.0mm)
- Housing: Glass fiber reinforced polyamide (UL94V-0), Black
- Switch Terminals: Solder Lug and .110" quick connect, epoxy sealed
- Lamp Voltage: 5V, 12V, 110V options
- Illumination: Bright LED, LED with resistor, Super bright LED options in various colors, with diffusers and lens options
- Operating Temperature Range: -25°C through +50°C for illuminated, -25°C through +70°C for non-illuminated
- Environmental: 90-95% humidity at 40°C for 96 hours, vibration 1.5mm amplitude at 1-55Hz, shock 50G
Buy the NKK LB15SKW0101JB – Reliable Illuminated Pushbutton Switch for Industrial Applications
Discover the durable and easy-to-install illuminated pushbutton switch designed for control panels and electronic systems. Perfectly suited for industrial applications, this switch offers bright LED illumination, multiple voltage options, and reliable long cycle life. Its snap-in mounting ensures quick installation, while the sealed design protects against dust and contaminants. Whether you need a standard or high-brightness indicator, this versatile switch enhances operational clarity and safety for automation, machinery, and control systems. Buy online now for fast delivery and guaranteed performance.
Order your NKK Series LB15SKW0101JB illuminated push-button switch today and give your projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy NKK Switches LB15SKW0101JB?
You can click on the BUY or RFQ button to purchase LB15SKW0101JB from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB15SKW0101JB?
You can download the LB15SKW0101JB datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB15SKW0101JB?
NKK Switches
