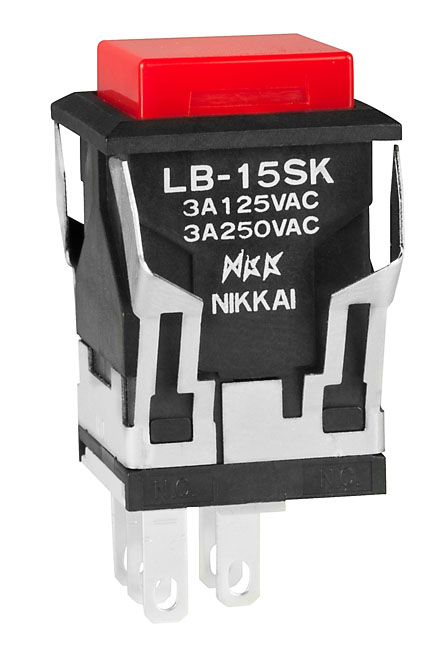

NKK Switches LB15SKW011CC Illuminated Pushbutton
This standard size illuminated snap-in pushbutton switch is ideal for panel mounting, offering bright surface illumination and easy installability. It features reliable contact mechanisms, available in multiple LED colors, and meets IP65 standards for dust and water resistance. The switch is designed with durable materials, including polycarbonate and stainless steel, ensuring long electrical and mechanical lifespan. With optional accessories like protective guards, it provides versatile solutions for control panels, automation, and industrial applications, combining functionality, durability, and ease of maintenance.
NKK Switches LB15SKW011CC Illuminated Pushbutton Specifications:
- Electrical Capacity: 3A @ 125V AC & 250V AC, 0.4VA max. @ 28V AC/DC
- Housing Material: Polycarbonate (UL94V-0), Stainless Steel clips
- Operating Temperature: -25°C to +50°C for illuminated, -25°C to +70°C for non-illuminated
- Dimensions: Fits cutout 0.638” x 0.638” for square models, panel thickness 1.0mm to 2.7mm
- LED Colors: Red, Amber, Green, Blue, White; Bright & Super Bright options available
- Ingress Protection: IP65 (dust and water resistant)
- Mechanical Life: 1,000,000 operations minimum
- Electrical Life: 200,000 operations minimum
- Pretravel/Overtravel: 1.5mm each, Total Travel: 3.0mm
- Contact Resistance: 50 milliohms max. for silver contacts
- Insulation Resistance: Minimum 200 megohms @ 500V DC
- Dielectric Strength: 1000V AC contact-to-contact, 1500V AC contact-to-case
- Mounting: Snap-in with clips, optional protective guards available
Buy the NKK Series LB Illuminated Pushbuttons: LB15SKW011CC
Purchase the NKK Series LB illuminated pushbutton online now to enhance your control panel's visibility and reliability. Featuring bright, full-surface illumination, IP65 protection, and durable polycarbonate and stainless steel construction, this switch offers long electrical and mechanical life, making it ideal for industrial applications. Its snap-in mounting ensures quick installation, while optional accessories like protective guards and dust covers allow for tailored solutions. Suitable for automation, machinery, and control panels, order today for a dependable and easy-to-maintain product to improve operational efficiency.
Order your NKK Series LB LB15SKW011CC illuminated pushbutton today and give your control panels the dependable, long-lasting quality they deserve.
Frequently Asked Questions
Where can I buy NKK Switches LB15SKW011CC?
You can click on the BUY or RFQ button to purchase LB15SKW011CC from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB15SKW011CC?
You can download the LB15SKW011CC datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB15SKW011CC?
NKK Switches
