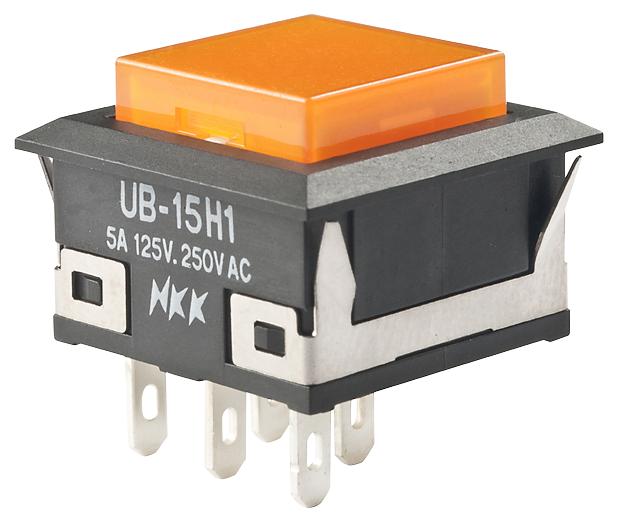

NKK Switches UB15KKW015DDD Illuminated Pushbutton
The Low Profile Pushbuttons series UB15KKW015DDD features illuminated, compact switches with bright or super bright LEDs in red, amber, green, blue, or white. Designed for space-constrained applications, these PCB-mounted switches incorporate snap-acting contacts with tactile feedback, quick-make/break actions, and durable construction with UL94V-0 rated materials. They offer multiple circuit configurations, excellent electrical ratings, and optional protective guards, making them ideal for industrial control panels, automation systems, and electronic devices requiring reliable, easy-to-install pushbutton solutions.
NKK Switches UB15KKW015DDD Illuminated Pushbutton Specifications:
- Power Level: 5A @ 125V/250V AC, 5A @ 30V DC
- Maximum Power Consumption: 0.4VA @ 28V AC/DC
- Contact Resistance: 50 milliohms (silver), 100 milliohms (gold)
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC for 1 minute between contacts; 1,500V AC between contacts and case
- Mechanical Life: 1,000,000 operations minimum for momentary, 200,000 for resistive load
- Electrical Life: 100,000 operations minimum for resistive load
- Operating Temperature Range: -25°C to +50°C (illuminated), -20°C to +70°C (non-illuminated)
- Material: Glass fiber reinforced polyamide (UL94V-0), stainless steel, phosphor bronze, copper
- Mounting: PCB with snap-in or solder lug terminals, panel thickness 0.039” to 0.126”
Buy the NKK UB15KKW015DDD – Reliable Illuminated Pushbutton for Industrial Applications
Purchase the NKK UB15KKW015DDD illuminated pushbutton online today and ensure your project benefits from high-quality, reliable switching components. These compact switches feature bright LEDs, robust construction, and precise tactile feedback, ideal for industrial control panels, automation, and electronic systems. Designed with ease of installation in mind, they offer excellent electrical ratings, UL recognition, and optional protective guards to extend lifespan in demanding environments. Secure your supply now to improve operational safety and efficiency with trusted NKK switches.
Order your NKK Series UB15KKW015DDD illuminated pushbutton today and enhance your control panel with dependable, space-saving switching solutions.
Frequently Asked Questions
Where can I buy NKK Switches UB15KKW015DDD?
You can click on the BUY or RFQ button to purchase UB15KKW015DDD from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB15KKW015DDD?
You can download the UB15KKW015DDD datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB15KKW015DDD?
NKK Switches
