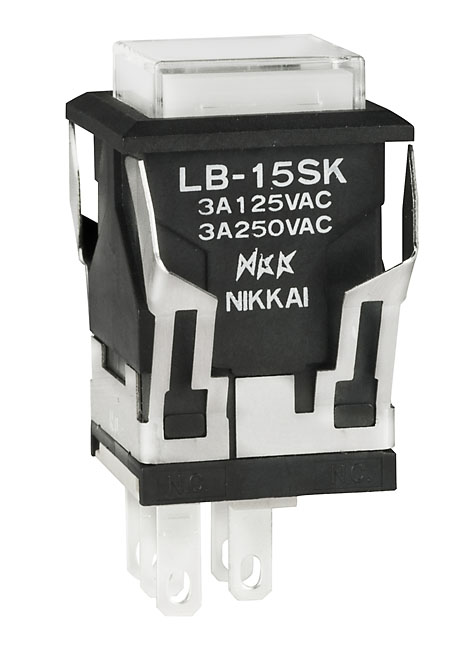

NKK Switches LB15SKW015DJB Illuminated Control Switch
The LB15 series illuminated pushbutton switch offers quick snap-in mounting for effortless installation in control panels and industrial equipment. Its bright LED illumination ensures high visibility even in low-light environments, making it ideal for signaling and control applications. Designed with durable materials and sealed housing for IP65 protection, this switch withstands harsh conditions while providing reliable operation for up to one million mechanical cycles. Suitable for use in various automation, machinery, and control systems, it features a stylish look combined with technical robustness and long-lasting performance.
NKK Switches LB15SKW015DJB Illuminated Control Switch Specifications:
- Housing Material: Polycarbonate, IP65 sealed
- Switch Housing Color: Black
- Poles & Circuits: SPDT, ON-(ON) with silver contacts
- Contact Resistance: 50 milliohms max for silver, 100 milliohms max for gold
- Insulation Resistance: 200 megohms min at 500V DC
- Dielectric Strength: 1,000V AC between contacts, 1,500V AC between contacts & case for 1 minute
- Mechanical Life: 1,000,000 operations minimum
- Electrical Life: 200,000 operations minimum
- Nominal Operating Force: 4.9N downward force on cap
- Travel: Pretravel 1.5mm, Overtravel 1.5mm, Total Travel 3.0mm
- Environmental: Operates from -25°C to +50°C, humidity 90-95% for 96 hours at 40°C
- Installation Force: Cap installation force 3.92N, quick connect 52.95N
- Soldering: Manual, profile A recommended, 0.5 sec at specified temperature
- Standards & Certifications: UL, CSA recognized, IP65 compliant when panel sealed
Buy the NKK Series LB Illuminated Pushbuttons: LB15SKW015DJB
Enhance your control panels with the NKK LB Series illuminated pushbutton switch, featuring snap-in mounting, IP65 sealing, bright LED illumination, and durable materials. Perfect for automation, machinery, and signaling applications, its long mechanical and electrical lifespan ensures reliable operation under tough conditions. Easy to install and highly visible, this switch combines technical excellence with a sleek design, making it a smart choice for engineers and technicians seeking quality and dependable performance in control systems. Buy online now and upgrade your control solutions.
Get NKK LB15SKW015DJB illuminated pushbutton today—built for precision, long-lasting durability, and reliable signaling in demanding environments.
