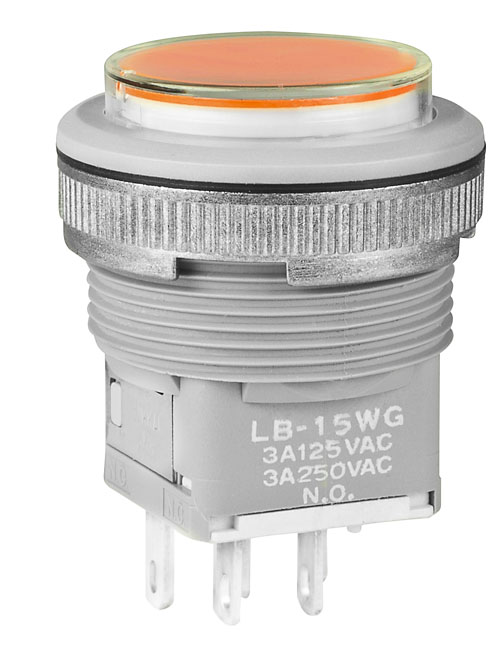

NKK Switches LB15WGW015D12JD Illuminated Pushbutton
This standard size illuminated pushbutton switch offers a waterproof design with IP65 sealing, making it suitable for industrial, outdoor, and automation applications. Equipped with bright LEDs in multiple colors such as red, green, and blue, it provides full surface illumination with front panel relamping. Its snap-action contact mechanism ensures long electrical life and high sensitivity. The switch features a stainless steel mounting clip compatible with various panel thicknesses, a latchdown feature for circuit status indication, and electrical ratings of up to 3A at 125V AC. Its compact design minimizes behind-panel depth, while matching indicators are available for enhanced operation.
NKK Switches LB15WGW015D12JD Illuminated Pushbutton Specifications:
- Electrical Capacity (Resistive Load): 3A @ 125V AC or 3A @ 250V AC or 3A @ 30V DC
- Contact Resistance: 50 milliohms maximum for silver; 100 milliohms maximum for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 minute; 1,500V AC between contacts & case for 1 minute
- Mechanical Life: 1,000,000 operations minimum
- Electrical Life: 200,000 operations minimum
- Nominal Operating Force: 5.39N
- Travel: Total 0.118” (3.0mm) with pretravel and overtravel of 0.059” (1.5mm) each
- Housing: Glass fiber reinforced polyamide (UL94V-0), black color
- Mounting: Stainless steel clips suitable for panel thickness 0.039” to 0.157” (1.0mm to 4.0mm)
- Sealing: IP65 compliance per IEC60529 (similar to NEMA 4 & 13)
- Operating Temperature Range: -25°C to +50°C for illuminated models
- Vibration: 10-55Hz, 1.5mm amplitude for 2 hours
- Shock: 50G acceleration in six directions
- Soldering: Manual, Profile A recommended, with 0.039” to 0.138” panel thickness
