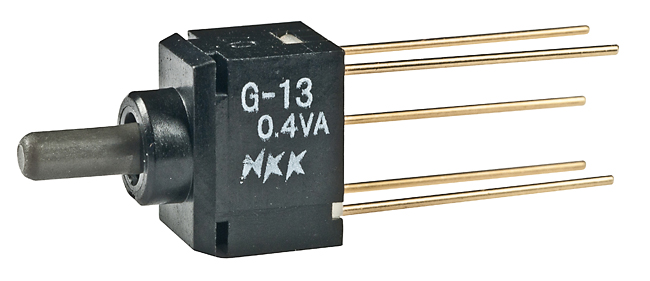

NKK Switches G13AW Miniature Sealed Toggle Switch
This ultra-miniature toggle switch is designed for compact electronic applications, combining a sealed body with innovative contact mechanisms for high reliability. Its small size allows high-density mounting, making it ideal for handheld and space-constrained devices. The switch features a molded-in epoxy sealed terminal for contamination resistance, an STC contact mechanism for smooth actuation, and a total weight of only 0.25 grams. Suitable for low-voltage logic circuits, it ensures enduring performance under various environmental conditions, including humidity, vibration, and shock exposure.
NKK Switches G13AW Miniature Sealed Toggle Switch Specifications:
- Poles & Circuits: SPDT, DPDT
- Actuator: Column toggle, right-angle or vertical
- Terminal Type: PC straight or right-angle, round terminals
- Size: 0.100" x 0.100" (2.54mm x 2.54mm) terminal spacing
- Weight: 0.25 grams
- Electrical Capacity: 0.4VA max @ 28V AC/DC (resistive load)
- Contact Resistance: 80 milliohms max
- Insulation Resistance: 500 megohms min @ 500V DC
- Dielectric Strength: 500V AC for 1 minute
- Electrical Life: 100,000 operations min for On-None-On & On-Off-On circuits
- Operating Temperature: -25°C to +85°C
- Humidity: 90-95% for 96 hours @ 40°C
- Vibration & Shock: Endurance up to 50G acceleration
- Materials: Glass fiber reinforced polyamide, phosphor bronze contacts with gold plating, nitrile rubber sealing ring
- Standards: Designed for low-voltage, logic-level applications; not UL or CSA certified
Buy the NKK G13AW – Reliable Toggle Switch for Industrial Applications
Purchase the NKK G13AW miniature sealed toggle switch online today and enjoy reliable operation for your electronic projects. Its compact size and sealed construction make it ideal for space-saving applications, providing long-lasting performance under various environmental conditions. Perfect for low-voltage circuits, this switch ensures smooth actuation, contamination resistance, and high durability. Order now to benefit from quick processing, secure payment options, and dedicated customer support, ensuring your electronics are equipped with a dependable switching solution.
Buy NKK G13AW now and experience unmatched reliability and performance in compact electronic switching.
Frequently Asked Questions
Where can I buy NKK Switches G13AW?
You can click on the BUY or RFQ button to purchase G13AW from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part G13AW?
You can download the G13AW datasheet or visit the NKK Switches website for support.
Who is the manufacturer of G13AW?
NKK Switches
