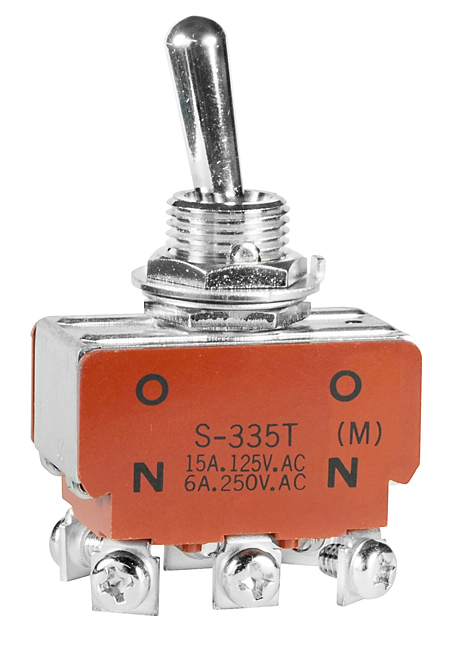

NKK Switches S335T Toggle Switch
The toggle switch offers versatile low to high capacity switching suitable for various electronic and industrial applications. Constructed with durable materials like brass with chrome plating, melamine phenol, and copper with silver plating, it ensures reliable performance. The switch supports resistive and inductive loads, with an operating temperature range of -10°C to +70°C. It features a minimum of 50,000 mechanical life operations and 15,000 electrical life cycles. Mounting is straightforward, with specified torque, and the switch complies with UL, CSA standards, ensuring safety and certification integrity.
NKK Switches S335T Toggle Switch Specifications:
- Contact Resistance: 10 milliohms maximum
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 2,000V AC minimum for 1 minute
- Mechanical Life: 50,000 operations minimum
- Electrical Life: 15,000 operations minimum
- Operating Temperature Range: -10°C to +70°C
- Mounting Torque: 2.94Nm (26 lbsin)
- Maximum Panel Thickness: as shown on switch dimension drawings
- Soldering Time & Temperature: Manual soldering, see Profile A in Supplement section
- Materials & Finishes: Toggle - Brass with chrome plating; Bushing - Brass with chrome plating; Case - Melamine phenol; Case Cover - Steel with zinc plating; Movable Contactor - Copper with silver plating; Terminals - Brass with tin plating
Buy the NKK Series S Toggle Switch: S335T
Purchase the reliable NKK Series S toggle switch online today and benefit from superior build quality, certified safety standards, easy installation, and versatile switching capability. Perfect for diverse electronic and industrial applications, this switch ensures long-lasting performance with durable materials like brass with chrome plating, melamine phenol, and copper with silver plating. Its broad load capacity, operating temperature range, and high cycle life make it ideal for demanding environments. Shop now to enhance your project with a proven, certified switching solution.
Buy NKK Series S S335T toggle switch now and experience unmatched reliability and performance for your electronic and industrial projects.
Frequently Asked Questions
Where can I buy NKK Switches S335T?
You can click on the BUY or RFQ button to purchase S335T from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part S335T?
You can download the S335T datasheet or visit the NKK Switches website for support.
Who is the manufacturer of S335T?
NKK Switches
