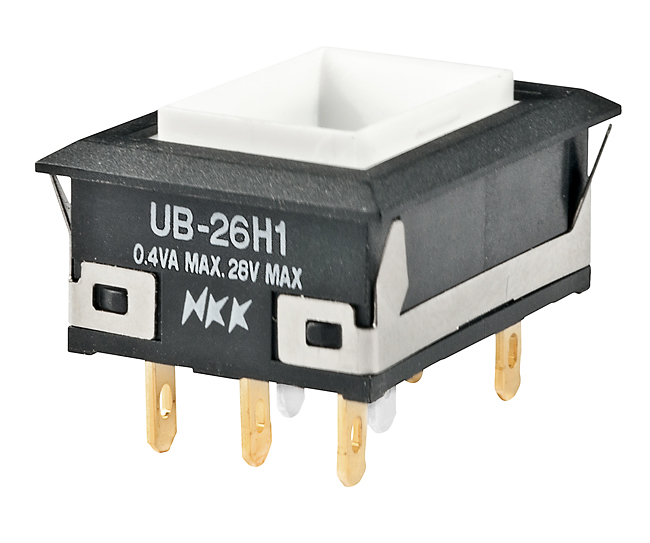

NKK Switches UB26NKG015F Low Profile Pushbutton Switch
A low-profile, illuminated pushbutton switch designed for PCB mounting and soldering applications. This switch features a compact form factor suitable for space-constrained designs and provides illumination for easy visibility.
NKK Switches UB26NKG015F Low Profile Pushbutton Switch Specifications:
- Poles & Circuits: Single Pole, Double Pole
- Mounting Types: PCB Mounting, Snap-in Mounting
- Cap Colors: Red, Amber, Green, White, Blue, Clear
- Cap Types: Full Face Illuminated, Spot Illuminated
- LED Colors & Ratings: Red, Amber, Green, White, Blue; Bright LED; Max Forward Current 30 mA
- Electrical Capacity: 5A @ 125/250V AC, 0.4VA max @ 28V AC/DC
- Contact Resistance: Silver contacts 50 milliohms max, Gold contacts 100 milliohms max
- Insulation Resistance: 200 Megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC contact- contact, 1,500V AC contact-case
- Mechanical Life: 1,000,000 operations (momentary), 200,000 operations (resistive load)
- Environmental: Operating temperature -20°C to +70°C, Humidity 90-95% at 40°C for 96 hours
- Material Housing/Bezel: UL94V-0 polyamide, Base: GFR polyamide
- Switch Terminals: Solder Lug, Straight PC
- Panel Thickness: 0.039” to 0.126” (1.0mm to 3.2mm)
- Soldering: Manual and wave soldering profiles; Hand cleaning with alcohol-based solution
Buy the Buy NKK Switches UB26NKG015F Online
Enhance your control panel with the NKK low-profile illuminated pushbutton switch, offering space-saving design, durable construction, and bright illumination. Ideal for space-constrained environments, it ensures easy operation and visibility. The switch is PCB mountable, with various LED colors, ratings, and custom legends available. It supports high electrical capacity, long mechanical life, and excellent environmental resilience, making it perfect for industrial machinery, automation, and instrumentation. Order online now for quick delivery and reliable performance in your projects.
Buy NKK Switches UB26NKG015F now and experience unmatched reliability and performance in space-sensitive applications.
Frequently Asked Questions
Where can I buy NKK Switches UB26NKG015F?
You can click on the BUY or RFQ button to purchase UB26NKG015F from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB26NKG015F?
You can download the UB26NKG015F datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB26NKG015F?
NKK Switches
