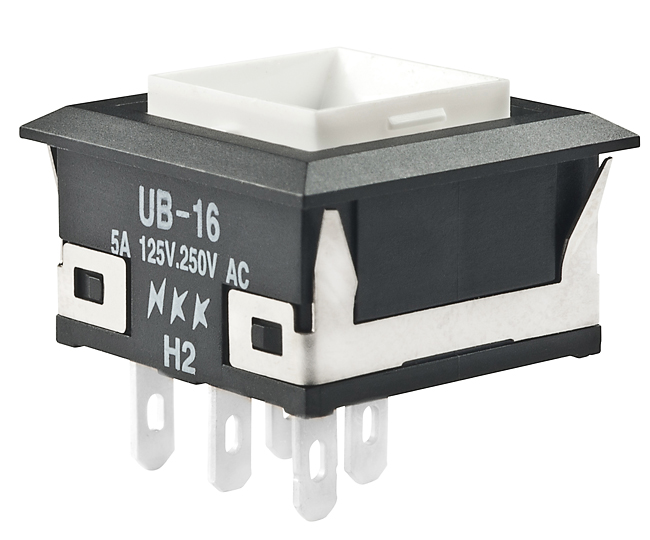

NKK Switches UB16KKW016B Low Profile Illuminated Pushbutton Switch
A low-profile, illuminated pushbutton switch with both PC and solder terminal configurations designed for easy installation and reliable operation.
NKK Switches UB16KKW016B Low Profile Illuminated Pushbutton Switch Specifications:
- Contact Resistance: 50 milliohms maximum for silver, 100 milliohms maximum for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC minimum between contacts for 1 minute, 1,500V AC minimum between contacts & case for 1 minute
- Mechanical Life: 1,000,000 operations minimum for momentary, 200,000 operations minimum for alternate action
- Electrical Life: 200,000 operations minimum for resistive load of 3A @ 125V AC
- Nominal Operating Force: 1.9N for single pole square, 1.9N for rectangular; double pole: 2.55N for square, 3.1N for rectangular
- Travel: Pretravel 0.067” (1.7mm); Overtravel 0.024” (0.6mm); Total Travel 0.091” (2.3mm)
- Housing Material: Glass fiber reinforced polyamide (UL94V-0)
- Operating Temperature Range: -25°C to +50°C for illuminated, -20°C to +70°C for non-illuminated
- Environmental Resistance: 90-95% humidity for 96 hours @ 40°C, Vibration 3 directions for 2 hours, Shock 50G
- Soldering: Wave and manual soldering profiles specified; not process sealed; hand clean with alcohol-based solutions
- Certifications: UL Recognized and CSA Certified when ordered with markings
Buy the NKK Series UB Low Profile Pushbuttons: UB16KKW016B
Discover the reliable and compact NKK Series UB low profile illuminated pushbutton switch. Designed for easy installation with PC or solder terminals, it offers durability, precise actuation, and excellent environmental resistance. Ideal for space-constrained applications, this switch supports high electrical capacity, long mechanical life, and certified safety standards. Enhance your control systems with this high-quality switch. Purchase online now for fast delivery and ensure your projects benefit from dependable, industrial-grade performance.
Order your NKK Series UB16KKW016B low-profile illuminated pushbutton switch today and give your projects the dependable quality they deserve.
