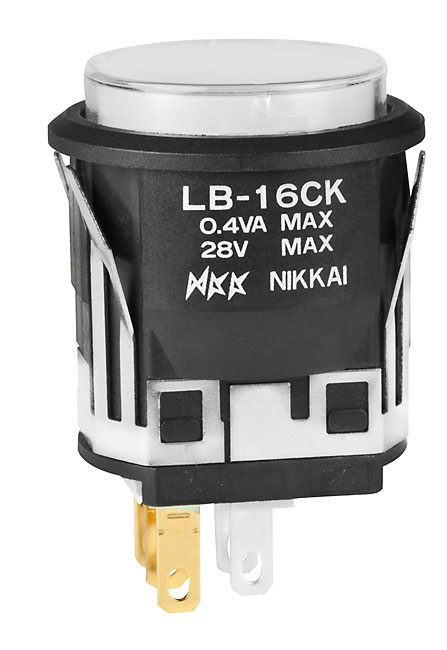

NKK Switches LB16CKW016FJB Illuminated Push Button Switch
This standard size illuminated push button switch features snap-in mounting for easy panel installation and replacement. It offers bright LED illumination with various color options, including red, amber, green, blue, and white, suitable for industrial and control panel applications. The switch supports both incandescent and neon lamps, with a robust construction of polycarbonate for the cap and GFR polyamide for the base. It includes features such as tactile feedback, long electrical life, and a compact design that minimizes behind-panel depth. Certified for reliable operation in diverse environments.
NKK Switches LB16CKW016FJB Illuminated Push Button Switch Specifications:
- Housing Material: Polycarbonate
- Base Material: GFR Polyamide
- Lamp Type: LED, Incandescent, Neon
- LED Colors: Red, Amber, Green, Blue, White
- Operating Temperature Range: -25°C to +50°C (illuminated), -25°C to +70°C (non-illuminated)
- Electrical Capacity: 3A @ 125/250V AC, 0.4VA @ 28V AC/DC
- Contact Resistance: 50 milliohms max for silver contacts, 100 milliohms for gold contacts
- Insulation Resistance: 200 MΩ min @ 500V DC
- Dielectric Strength: 1,000V AC between contacts, 1,500V AC between contacts and case
- Mechanical Life: 1,000,000 operations (momentary), 200,000 (maintained circuit)
- Nominal Operating Force: 4.9 N
- Travel: Pretravel 1.5 mm, Overtravel 1.5 mm, Total Travel 3.0 mm
- Mounting: Snap-in
- Certifications: UL, cUL, CSA (recognized with marking)
- Panel Thickness: .039” to .157” (1.0mm to 4.0mm)
- Housing Color: Black
- Switch Poles & Circuits: SPDT - ON-(ON)
- Dimensions: 18.0 mm x 21.0 mm
- Approvals: UL, CSA recognized when ordered with marking
Buy the Buy NKK Switches Standard Size Pushbutton Part Number LB16CKW016FJB Online
Order the NKK Switches LB16CKW016FJB now for dependable, high-quality control switches. This illuminated push button with snap-in mounting is ideal for industrial and control panel applications. It features bright LED illumination in multiple colors, a durable polycarbonate cap, and certified safety standards. Easy to install and replace, it supports a variety of lamps including LED, incandescent, and neon, ensuring versatile use. Enhance your equipment’s reliability with this compact, robust switch designed for long-lasting performance and simplified maintenance.
Buy NKK Switches LB16CKW016FJB now and experience unmatched reliability and performance in your control panels and industrial applications.
Frequently Asked Questions
Where can I buy NKK Switches LB16CKW016FJB?
You can click on the BUY or RFQ button to purchase LB16CKW016FJB from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB16CKW016FJB?
You can download the LB16CKW016FJB datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB16CKW016FJB?
NKK Switches
