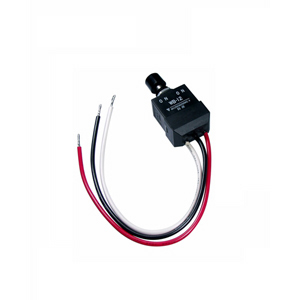

NKK Switches WB12L Sealed Pushbutton Switch
The environmentally sealed pushbutton switch offers durability and reliability, designed for harsh conditions with IP67 protection. Its single-unit construction of bushing and case provides enhanced environmental protection against dust and water ingress. The switch features a heat-resistant resin housing meeting UL 94V-0 standards, high arc, and tracking resistance. Available in various configurations for circuit poles, with solder lug, screw terminal, and wire lead options, and features a momentary or alternate action toggle. Suitable for demanding industrial applications requiring robust, sealed, and long-lasting switching solutions.
NKK Switches WB12L Sealed Pushbutton Switch Specifications:
- Electrical Capacity: 6A at 125V AC, 3A at 250V AC
- Contact Resistance: 30 milliohms maximum
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,500V AC for 1 minute
- Mechanical Life: 30,000 operations minimum
- Electrical Life: 15,000 operations minimum
- Total Travel: 0.177 inches (4.5mm) for alternate action, 0.110 inches (2.8mm) for momentary
- Materials: Brass with nickel plating (plunger), Fiberglass-reinforced polyamide (housing), Melamine (insulation)
- Operating Temp Range: -30°C to +70°C
- Humidity: 90-95% for 96 hours at 40°C
- Vibration: 10-55Hz, peak-to-peak 1.5mm, 1 minute
- Shock: 50G acceleration
- Mounting Torque: 1.5Nm
- Standards & Certifications: UL 94V-0 flammability, IP67 front panel, IP60 behind panel, CSA TEW 105 Recognized, Temperature Range -20°C to +105°C
Buy the Buy NKK Environmentally Sealed Pushbutton Series WB Part Number WB12L Online
Order the NKK environment sealed pushbutton switch WB12L today to ensure reliable operation in tough industrial environments. Its robust construction, IP67 rating, and high electrical capacity make it ideal for demanding applications requiring rugged, water-resistant, and dust-tight switching solutions. With a lifetime of over 30,000 cycles, this switch guarantees durability and long-term performance. Easy to install with various terminal options, it is perfect for automation, machinery, and control panels seeking superior environmental protection and dependable operation. Purchase online now to enhance your equipment’s reliability and safety.
Get NKK WB12L today—built for durability in harsh environments with reliable sealing and high rating for industrial controls.
Frequently Asked Questions
Where can I buy NKK Switches WB12L?
You can click on the BUY or RFQ button to purchase WB12L from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part WB12L?
You can download the WB12L datasheet or visit the NKK Switches website for support.
Who is the manufacturer of WB12L?
NKK Switches
